Faster R-CNN: Real-Time Object Detection

TL;DR

Faster R-CNN eliminates the region proposal bottleneck that limited R-CNN and Fast R-CNN by introducing a Region Proposal Network (RPN) — a small fully convolutional network that shares features with the detector and predicts object proposals directly from the convolutional feature map. The result is a unified, two-stage detection pipeline where proposal generation costs nearly zero additional computation. With shared VGG-16 features, the paper reports 69.9% mAP on VOC 2007 when trained on VOC 2007 alone, or 73.2% when trained on VOC 2007+2012. Its roughly 5 fps inference timing is measured on a K40 GPU. These are different training protocols, not interchangeable accuracy figures (Table III and §IV-A).

The Road to Faster R-CNN

Understanding Faster R-CNN requires understanding what it replaced. The R-CNN family evolved through three generations, each removing a bottleneck from the previous one:

R-CNN (Girshick et al. 2014) introduced the two-stage paradigm: use Selective Search to generate ~2000 region proposals, warp each to a fixed size, run each independently through a CNN for feature extraction, then classify with an SVM and refine bounding boxes with regression. This achieved strong accuracy but was painfully slow — the CNN ran separately on every proposal, taking ~47 seconds per image on a GPU.

Fast R-CNN (Girshick 2015) solved the redundant computation problem. Instead of running the CNN per-proposal, it runs the CNN once on the entire image to produce a shared feature map, then uses RoI Pooling to extract fixed-size features for each proposal from that shared map. Classification and bounding box regression are unified into a single multi-task network. This reduced per-image inference to ~0.3 seconds — but Selective Search still took ~2 seconds per image, making it the dominant bottleneck.

Faster R-CNN eliminates Selective Search entirely. The RPN generates proposals from the same convolutional features used for detection, making proposal generation nearly free (~10ms). The entire pipeline — feature extraction, proposal generation, classification, and bounding box regression — is a single trainable network.

Region Proposal Network (RPN)

The RPN is the core contribution. It is a small network that slides over the convolutional feature map produced by a backbone CNN (e.g., VGG-16 or ZF-Net). At each spatial location, it simultaneously predicts object/background scores and bounding box offsets for a set of reference boxes called anchors.

Concretely, the RPN takes the feature map of size H \times W \times C and applies a 3×3 convolutional layer (with 256 or 512 filters) followed by two sibling 1×1 convolutional layers: one for classification (2k outputs for k anchors, encoding object vs. background) and one for regression (4k outputs encoding bounding box deltas).

Anchor Boxes: Scales and Aspect Ratios

At each of the H \times W spatial locations, the RPN places k anchor boxes centered on that location. The paper uses 3 scales (128, 256, 512 pixels) and 3 aspect ratios (1:1, 1:2, 2:1), giving k = 9 anchors per location. For a typical feature map of size 40 \times 60, this produces roughly 20,000 anchors per image.

This design is a key insight: rather than building image pyramids or filter pyramids to handle multi-scale detection (as in earlier work), the anchor mechanism handles scale and aspect ratio variation through the reference boxes themselves. The convolutional features are computed at a single scale, and the anchors project predictions back to multiple scales in the input image.

The Two-Stage Pipeline

Faster R-CNN operates in two stages with shared convolutional features:

Stage 1 — Region Proposal (RPN): The backbone CNN produces a feature map. The RPN slides over this map, predicting objectness scores and bounding box refinements for each anchor. Non-maximum suppression (NMS) with an IoU threshold of 0.7 reduces the ~20,000 anchors to roughly 2,000 proposals, ranked by objectness score. The top-N proposals (300 at test time) are passed to stage 2.

Stage 2 — Detection (Fast R-CNN head): RoI Pooling extracts fixed-size features (e.g., 7×7) from the shared feature map for each proposal. These features pass through fully connected layers that predict class-specific scores across C + 1 categories (including background) and class-specific bounding box refinements. A second round of NMS produces the final detections.

The critical architectural choice is that both stages share the same backbone convolutional layers. The RPN and the detector do not maintain separate feature extractors — they both read from the same feature map, which is what makes proposal generation nearly free.

Multi-Task Loss

Both the RPN and the detection head are trained with a multi-task loss combining classification and bounding box regression:

Here p_i is the predicted probability of anchor i being an object, p_i^* is the ground-truth label (1 for positive, 0 for negative), t_i is the predicted bounding box parameterization, and t_i^* is the ground-truth regression target. L_{cls} is log loss over two classes (object vs. background), and L_{reg} is the smooth L1 loss:

The regression targets are parameterized as offsets relative to the anchor box:

where (x, y, w, h) are the predicted box center and dimensions and (x_a, y_a, w_a, h_a) are the anchor box parameters. The regression term is activated only for positive anchors (p_i^* = 1), so the network does not try to regress boxes for background regions.

Training Strategy

The paper discusses alternating, approximate joint, and non-approximate joint training. Its reported experiments use four-step alternating training; the released author Python port also provides the approximate joint solver (§III-B).

4-Step Alternating Training: (1) Train RPN initialized from an ImageNet-pretrained backbone. (2) Train the Fast R-CNN detection head using proposals from the step-1 RPN, with a separate backbone. (3) Fix the shared convolutional layers and fine-tune only the RPN-specific layers. (4) Fix shared layers and fine-tune only the detection head layers. This produces a unified network where both stages share identical convolutional features.

Approximate Joint Training: Merge the RPN and Fast R-CNN losses into a single network and backpropagate through both simultaneously. This is simpler and ~25-50% faster to train than alternating, though the gradients from RoI Pooling are approximated (the proposal box coordinates are treated as fixed during backpropagation through the RoI layer). The authors report close empirical results for this solver; this does not make it mathematically equivalent to differentiating through proposal coordinates.

Anchor labeling follows specific rules: an anchor is positive if it has IoU > 0.7 with any ground-truth box, or if it is the highest-IoU anchor for a given ground-truth box (ensuring every object has at least one positive anchor). Anchors with IoU < 0.3 with all ground-truth boxes are negative. Anchors between 0.3 and 0.7 are ignored during training. Each mini-batch samples up to 256 anchors with at most 128 positives, filling the remaining positions with negatives when available. The best-IoU rule guarantees positives before subsampling, which can subsequently discard some of them.

Implementation

The losses now have concrete inputs: shared features produce anchor scores and offsets, filtered proposals select pooled regions, and a second head recognizes and refines those regions. The implementation follows that data flow, then compares its numerical mechanics with authentic inference from a later pretrained detector.

Follow the complete two-stage path in a runnable CPU reference. The small backbone and random weights make the forward pass, four losses, SGD update and two rounds of NMS easy to inspect. They do not reproduce pretrained recognition or the original benchmark training recipe.

Python training reference · Pinned requirements · Pinned author Python port

python faster_rcnn_training.py --smoke

The author’s Python port distinguishes its approximate joint training and minor coordinate/performance differences from the official MATLAB implementation. The rows explain that lineage; the recorded pretrained artifacts below use a later native TorchVision model.

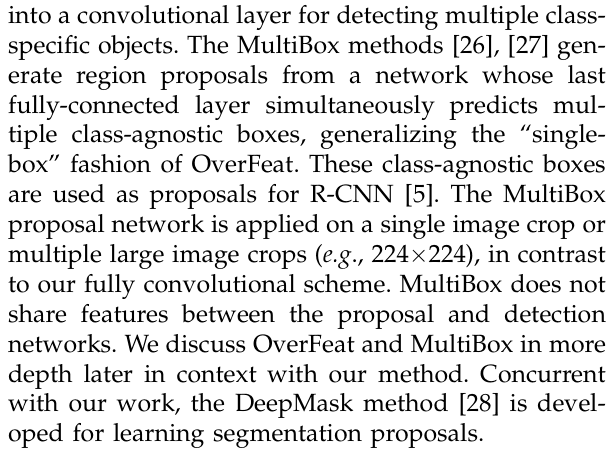

1. Compute one feature map for both stages

Original paper

Enlarge figure

Math and tensor shapes

F=f_{\theta}(I)

o=\operatorname{Conv}_{K}(F)

d=\operatorname{Conv}_{4K}(F)

The small reference maps a 64 × 80 image to stride-4 features. A 3 × 3 RPN convolution feeds two 1 × 1 siblings. It uses K logistic logits instead of the paper’s 2K softmax scores, an alternative noted in §III-A1. Both losses update the same backbone.

I [1,3,64,80] → F [1,16,16,20]; K=9; logits [2880], deltas [2880,4]

Python implementation

python

self.backbone = nn.Sequential(
    nn.Conv2d(3, 16, 3, stride=2, padding=1),
    nn.ReLU(),
    nn.Conv2d(16, 16, 3, stride=2, padding=1),
    nn.ReLU(),
)
self.rpn_conv = nn.Conv2d(16, 16, 3, padding=1)
self.objectness = nn.Conv2d(16, 9, 1)  # One logistic score per anchor.
self.rpn_deltas = nn.Conv2d(16, 9 * 4, 1)
self.roi_hidden = nn.Linear(16 * 3 * 3, 32)
self.classifier = nn.Linear(32, classes)
self.box_regressor = nn.Linear(32, classes * 4)

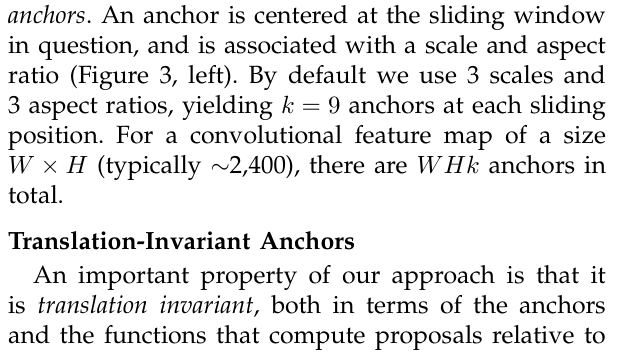

2. Align every output channel with its reference anchor

Original paper

Enlarge figure

Math and tensor shapes

w=s\,r^{-1/2}

h=s\,r^{1/2}

A=HWK

Here r is height/width. Flatten in y, x, ratio, scale order, keeping scale fastest within a ratio. The head flattens channels in the same order. Small 8/16/32 edge-length scales replace the original 128/256/512 scales; this stride-4 demonstration is not the original stride-16 VGG16 model.

16×20 locations × 9 anchors = 2880; continuous centers at (x+.5, y+.5)×4

Matched author source

Python implementation

python

def make_anchors(
    height, width, stride=4, scales=(8, 16, 32), ratios=(0.5, 1, 2)
):
    """Return [H*W*K, 4], ordered y, x, ratio, then scale (fastest)."""
    if (
        not all(
            isinstance(value, int) and value > 0
            for value in (height, width, stride)
        )
        or not scales
        or not ratios
        or min(*scales, *ratios) <= 0
    ):
        raise ValueError(
            "Grid dimensions, stride, scales and ratios must be positive"
        )
    templates = []
    for ratio in ratios:  # ratio = height / width
        for scale in scales:
            w, h = scale / ratio**0.5, scale * ratio**0.5
            templates.append([-w / 2, -h / 2, w / 2, h / 2])
    y, x = torch.meshgrid(
        torch.arange(height), torch.arange(width), indexing="ij"
    )
    centers = torch.stack((x, y, x, y), dim=-1).float()
    centers = (centers + 0.5) * stride
    return (centers.reshape(-1, 1, 4) + torch.tensor(templates)).reshape(-1, 4)

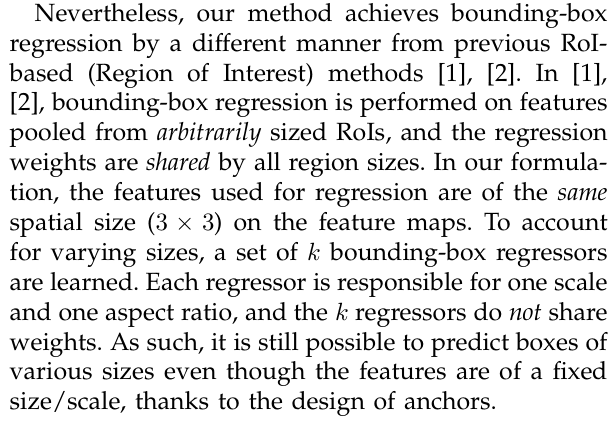

3. Learn translations and relative changes in size

Original paper

Enlarge figure

Math and tensor shapes

t_x=(x-x_a)/w_a

t_w=\log(w/w_a)

The y and height terms follow the same rule. Decoding uses x=xₐ+tₓwₐ and w=wₐexp(tw). These continuous xyxy boxes have width x₂−x₁ and decode back to the original edges. The Caffe port uses inclusive pixels with +1 widths and heights; mixing its offsets, clipping limits or rounded anchor templates with this convention changes the numbers. The decode clamp is an overflow guard for extreme log sizes.

Matched anchors and target boxes [A,4] → regression targets [A,4]

Matched author source

Python implementation

python

def encode_boxes(anchors, boxes):
    """Convert matched continuous boxes into translation and log-scale targets."""
    validate_boxes(anchors, "anchors")
    validate_boxes(boxes)
    if boxes.shape != anchors.shape:
        raise ValueError(
            "Matched boxes and anchors must have identical shapes"
        )
    awh, bwh = anchors[:, 2:] - anchors[:, :2], boxes[:, 2:] - boxes[:, :2]
    ac, bc = anchors[:, :2] + awh / 2, boxes[:, :2] + bwh / 2
    return torch.cat(((bc - ac) / awh, torch.log(bwh / awh)), dim=1)


def decode_boxes(anchors, deltas):
    """Invert encoding; clamp log-scale only to avoid exponential overflow."""
    validate_boxes(anchors, "anchors")
    if deltas.shape != anchors.shape or not torch.isfinite(deltas).all():
        raise ValueError("Deltas must be finite [N, 4] matching anchors")
    wh = anchors[:, 2:] - anchors[:, :2]
    center = anchors[:, :2] + wh / 2 + deltas[:, :2] * wh
    size = deltas[:, 2:].clamp(max=4.135).exp() * wh
    return torch.cat((center - size / 2, center + size / 2), dim=1)

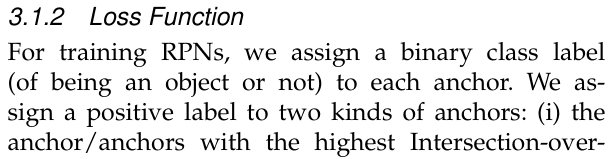

4. Decide which anchors provide supervision

Original paper

Enlarge figure

Math and tensor shapes

p_i^*\in\{-1,0,1\}

\operatorname{IoU}(a,g)=\frac{|a\cap g|}{|a\cup g|}

Outside-image anchors stay ignored. Inside anchors with IoU below .3 are negative; at least .7 are positive, matching the author port’s boundary. All anchors tied for each ground-truth box’s best IoU also become positive, even below .7. The .3–.7 band otherwise stays ignored. Sample up to 256 with at most 128 positives. The positive guarantee applies before sampling; subsampling can remove a particular object’s positive anchor.

IoUs [inside anchors,G]; labels [A], values −1/0/1; empty-GT images are an explicit extension

Matched author source

Python implementation

python

def match_anchors(anchors, ground_truth, image_size):
    """Label inside anchors; preserve all best-IoU ties before subsampling."""
    validate_boxes(anchors, "anchors")
    validate_boxes(ground_truth, "ground truth")
    h, w = image_size
    if min(h, w) <= 0:
        raise ValueError("Image size must be positive")
    if (
        (ground_truth[:, :2] < 0).any()
        or (ground_truth[:, 2] > w).any()
        or (ground_truth[:, 3] > h).any()
    ):
        raise ValueError("Ground truth boxes must lie within the image")
    inside = (
        (anchors[:, :2] >= 0).all(1)
        & (anchors[:, 2] <= w)
        & (anchors[:, 3] <= h)
    )
    labels = torch.full((len(anchors),), -1, dtype=torch.long)
    targets = torch.zeros_like(anchors)
    if not inside.any():
        raise ValueError(
            "No inside anchors; use a larger image or smaller anchors"
        )
    if not len(ground_truth):
        labels[inside] = 0
        return labels, targets
    overlaps = box_iou(anchors[inside], ground_truth)
    best, matched = overlaps.max(dim=1)
    local = torch.full_like(matched, -1)
    local[best < 0.3] = 0
    local[best >= 0.7] = 1  # Author Python port uses >= at this boundary.
    local[(overlaps == overlaps.max(dim=0).values).any(dim=1)] = 1
    labels[inside] = local
    targets[inside] = encode_boxes(anchors[inside], ground_truth[matched])
    return labels, targets


def sample_labels(labels, batch_size=256):
    """Sample up to half positives, then negatives; -1 contributes no loss."""
    if batch_size <= 0:
        raise ValueError("Batch size must be positive")
    sampled = torch.full_like(labels, -1)
    positive = torch.where(labels == 1)[0]
    negative = torch.where(labels == 0)[0]
    positive = positive[torch.randperm(len(positive))[: batch_size // 2]]
    negative = negative[
        torch.randperm(len(negative))[: batch_size - len(positive)]
    ]
    sampled[positive], sampled[negative] = 1, 0
    return sampled

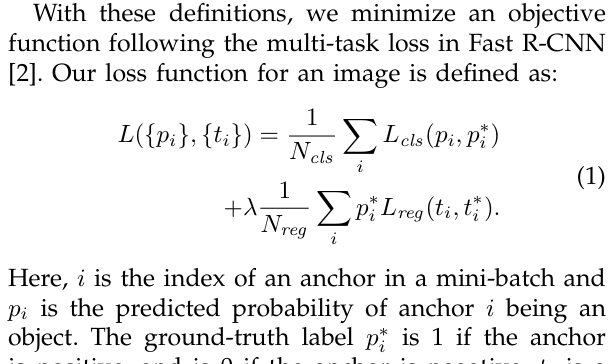

5. Train objectness everywhere sampled, geometry only on positives

Original paper

Enlarge figure

Math and tensor shapes

\ell_i=\operatorname{BCE}(o_i,p_i^*)

L_{cls}=\frac{1}{N_{cls}}\sum_{i\in S}\ell_i

\phi(v)=\operatorname{smooth}_{L_1}(v)

\Delta_i=d_i-t_i^*

r_i=\sum_{q=1}^{4}\phi(\Delta_{i,q})

L_{reg}=\frac{10}{HW}\sum_{i\in S_+}r_i

L_{RPN}=L_{cls}+L_{reg}

The mean BCE divides by the actual sampled count, at most 256. Regression sums four smooth-L1 terms per positive and uses the paper’s λ=10 and location-count normalization, here HW=320. This is not a positive-count mean. Negative and ignored anchors receive no regression gradient; ignored anchors also receive no classification gradient. β=1 implements the piecewise quadratic/linear loss.

Objectness logits [A]; deltas and targets [A,4]; two scalar RPN losses

Python implementation

python

def rpn_losses(logits, deltas, labels, targets, locations):
    """Paper Eq.1: sampled classification, positive-only smooth L1 regression."""
    if (
        logits.shape != labels.shape
        or deltas.shape != targets.shape
        or deltas.shape != (len(labels), 4)
        or locations <= 0
    ):
        raise ValueError("RPN shapes or location count are invalid")
    if not torch.isin(labels, torch.tensor([-1, 0, 1])).all():
        raise ValueError("RPN labels must be -1, 0, or 1")
    active, positive = labels >= 0, labels == 1
    classification = logits.sum() * 0
    if active.any():
        classification = F.binary_cross_entropy_with_logits(
            logits[active], labels[active].float(), reduction="mean"
        )
    regression = F.smooth_l1_loss(
        deltas[positive], targets[positive], beta=1.0, reduction="sum"
    ) * (10.0 / locations)
    return classification, regression

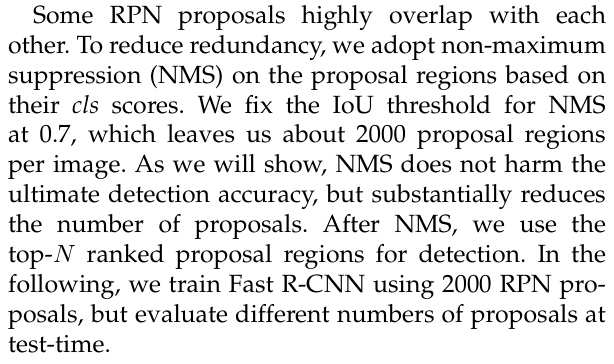

6. Turn anchor predictions into a small proposal set

Original paper

Enlarge figure

Math and tensor shapes

B_0=\operatorname{Decode}(a,d)

B_1=\operatorname{Clip}(B_0)

B_2=\operatorname{Filter}(B_1)

B_3=\operatorname{Top}_{200}(B_2)

B_4=\operatorname{NMS}_{0.7}(B_3)

\mathcal P=\operatorname{Top}_{32}(B_4)

Decode offsets, clip to the image, reject boxes narrower or shorter than two pixels, rank objectness, and suppress overlaps. The reference uses 200 pre-NMS and 32 post-NMS boxes for speed, rather than the author port’s test limits of 6000 and 300. Detaching boxes removes the detector-loss derivative through proposal coordinates, the approximation described in §III-B.

2880 anchor predictions → up to 32 detached [x₁,y₁,x₂,y₂] proposals

Matched author source

Python implementation

python

def make_proposals(
    anchors, logits, deltas, image_size, pre_nms=200, post_nms=32
):
    """Decode, clip, filter small boxes, sort, suppress, and detach proposals."""
    if pre_nms <= 0 or post_nms <= 0 or min(image_size) <= 0:
        raise ValueError(
            "Proposal limits and image dimensions must be positive"
        )
    boxes = clip_boxes_to_image(
        decode_boxes(anchors, deltas.detach()), image_size
    )
    sizes = boxes[:, 2:] - boxes[:, :2]
    valid = (sizes >= 2).all(dim=1)
    boxes, scores = boxes[valid], logits.detach().sigmoid()[valid]
    order = scores.argsort(descending=True, stable=True)[:pre_nms]
    boxes, scores = boxes[order], scores[order]
    keep = greedy_nms(boxes, scores, 0.7)[:post_nms]
    return boxes[keep], scores[keep]

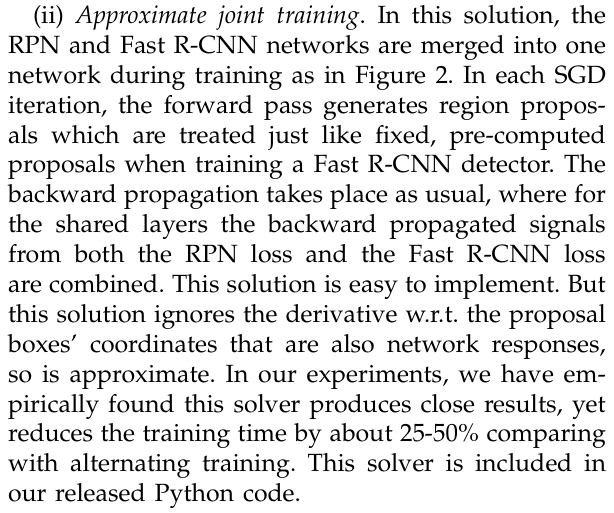

7. Pool each region from the shared feature map

Original paper

Enlarge figure

Math and tensor shapes

R_j=\operatorname{RoIPool}(F,b_j)

R_j\in\mathbb{R}^{C_f\times3\times3}

The native roi_pool operator quantizes boundaries and max-pools bins. Features remain differentiable; proposals are treated as fixed. This example pools to 3 × 3 instead of the original 7 × 7, and uses continuous input boxes with the native operator’s quantization rather than claiming Caffe numerical parity. RoIAlign interpolates samples instead: it is a later choice, used by the pretrained FPN detector below.

RoIs [R,5] include batch index 0; pooled [R,16,3,3] → hidden [R,32]

Python implementation

python

def roi_head(self, features, proposals):
    """Reuse the feature map; roi_pool quantizes bins and takes maxima."""
    batch_indices = torch.zeros(len(proposals), 1)
    rois = torch.cat((batch_indices, proposals.detach()), dim=1)
    pooled = roi_pool(
        features, rois, output_size=(3, 3), spatial_scale=0.25
    )
    hidden = F.relu(self.roi_hidden(pooled.flatten(1)))
    logits = self.classifier(hidden)
    deltas = self.box_regressor(hidden).reshape(-1, self.classes, 4)
    return logits, deltas

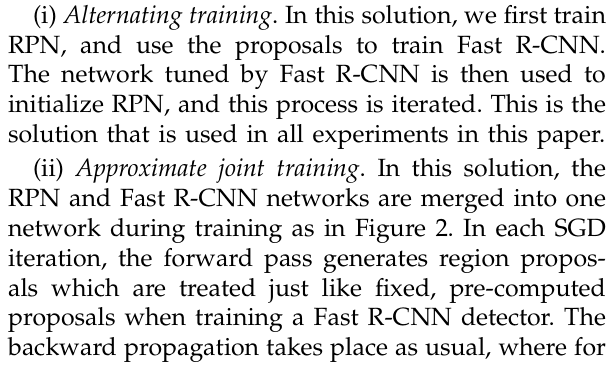

8. Classify regions and refine the correct foreground class

Original paper

Enlarge figure

Math and tensor shapes

L_{cls}=\operatorname{CE}(z,u)

\Delta_j=d_{j,u_j}-t_j^*

r_j=\sum_{q=1}^{4}\phi(\Delta_{j,q})

L_{box}=\frac{1}{R}\sum_{j:u_j>0}r_j

L_{det}=L_{cls}+L_{box}

Append ground-truth boxes to training proposals, then sample up to eight foreground RoIs and fill the 32-RoI batch from overlaps [.1,.5). Foreground overlap is at least .5. Background has label 0 and no regression loss. For a positive class u, index only that class’s four deltas. This reduced approximate joint update is distinct from the paper’s four-step alternating benchmark training.

z [R,3] = background + 2 teaching classes; d [R,3,4]; labels [R]

Matched author source

Python implementation

python

def detector_losses(logits, deltas, labels, targets):
    """Classify each RoI; regress only the target foreground class's four values."""
    classes = logits.shape[1]
    if (
        labels.shape != (len(logits),)
        or labels.dtype != torch.long
        or ((labels < 0) | (labels >= classes)).any()
        or deltas.shape != (len(logits), classes, 4)
        or targets.shape != (len(logits), 4)
    ):
        raise ValueError("Detector labels or tensor shapes are invalid")
    classification = (
        F.cross_entropy(logits, labels) if len(labels) else logits.sum() * 0
    )
    positive = torch.where(labels > 0)[0]
    regression = F.smooth_l1_loss(
        deltas[positive, labels[positive]],
        targets[positive],
        beta=1.0,
        reduction="sum",
    ) / max(1, len(labels))
    return classification, regression

9. Apply the second suppression within each object class

Original paper

Enlarge figure

Math and tensor shapes

\widehat b_{j,c}=\operatorname{Decode}(b_j,d_{j,c})

\widetilde b_{j,c}=\operatorname{Clip}(\widehat b_{j,c})

p_j=\operatorname{softmax}(z_j)

\mathcal D_c=\operatorname{NMS}_{0.3}(B_c,p_c)

Discard background, decode and clip a separate box for every foreground class, threshold scores, and run greedy NMS independently within each class. A box suppressed as one category can survive as another. These two teaching classes carry no pretrained semantics. In the equations, Bc and pc contain the valid boxes and matching scores after thresholding. The real COCO checkpoint below has its own .5 detection NMS and .05 output score threshold.

Per-RoI scores [R,3] and deltas [R,3,4] → up to 100 final labelled boxes

Matched author source

Python implementation

python

def final_detections(
    proposals, logits, deltas, image_size, score_threshold=0.05
):
    """Decode every foreground class; clip, threshold, and NMS per class."""
    probabilities = logits.softmax(dim=-1)
    output = []
    for label in range(1, logits.shape[1]):  # Exclude background class 0.
        boxes = clip_boxes_to_image(
            decode_boxes(proposals, deltas[:, label]), image_size
        )
        scores = probabilities[:, label]
        valid = (boxes[:, 2:] > boxes[:, :2]).all(1) & (
            scores >= score_threshold
        )
        boxes, scores = boxes[valid], scores[valid]
        for index in greedy_nms(boxes, scores, 0.3):
            output.append(
                {
                    "label": label,
                    "score": scores[index].item(),
                    "box": boxes[index].tolist(),
                }
            )
    return sorted(output, key=lambda detection: -detection["score"])[:100]

Inspect genuine later Faster R-CNN detections

These recorded CPU predictions come from the full TorchVision ResNet-50-FPN COCO_V1 detector, strictly loaded with all 295 state keys. It uses a feature pyramid and MultiScaleRoIAlign, not the original single-map VGG16 and RoI Pooling architecture. Changing this display threshold filters the saved detections; it does not run inference in your browser.

PhotographChelsea the catCup of coffeeDisplay score ≥ 0.50

1 displayed of 12 saved detections.

COCO label	Score	Box [x₁,y₁,x₂,y₂]
cat (17)	0.9862	[0.0, 5.0, 398.9, 293.4]

Input RGB values are scaled to [0,1], normalized by mean [.485,.456,.406] and standard deviation [.229,.224,.225], bilinearly resized to a short edge of 800 with long edge capped at 1333, then padded to a multiple of 32. This photo was resized to 800 × 1202 and padded as [1, 3, 800, 1216]. The exact transform, checkpoint SHA256, installed source hashes, command, environment and every output box/label/score are in the downloadable record. These are two photo predictions, not a COCO evaluation or the paper’s reported accuracy.

Predictions and provenance JSON · Native export script · Pinned TorchVision implementation

bash

python examples/faster_rcnn_export.py --checkpoint .context/paper-series/weights/fasterrcnn_resnet50_fpn_coco-258fb6c6.pth --photos-dir public/examples/vit-demo --output public/examples/faster-rcnn-demo

The reference explains how the two stages connect. The following results come from the paper’s dataset-scale experiments and original training protocols, not from this small training run or the two recorded photos.

Key Results

PASCAL VOC 2007/2012: Table III reports shared VGG-16 at 69.9% mAP on VOC 2007 with VOC 2007 training, and 73.2% with VOC 2007+2012 training. Table IV reports 70.4% on VOC 2012 with VOC 2007 trainval+test and VOC 2012 trainval training (the “07++12” protocol). Later ResNet backbones use different models and protocols, so their accuracy should be read separately. The RPN with shared features outperforms Selective Search as a proposal method — at 300 proposals, RPN achieves higher recall than Selective Search with 2000 proposals.

MS COCO: Faster R-CNN achieved 21.9% mAP (at IoU 0.5:0.95) on the COCO test-dev set, establishing the benchmark for two-stage detectors. On the easier IoU=0.5 metric, it reaches 42.7% mAP.

Speed: With VGG-16, the system runs at ~5 fps (198ms per image) on a K40 GPU, of which only ~10ms is spent on proposal generation. This is a roughly 10x speedup over Fast R-CNN with Selective Search. With the lighter ZF-Net backbone, it reaches ~17 fps.

The VOC 07 scores above identify their training data. The same 07+12 protocol gives Fast R-CNN 70.0% in Table VI. Table V separates Selective Search (1510 ms on CPU on average) from the Fast R-CNN detector (320 ms with 2000 proposals, or 223 ms with SVD); Faster R-CNN takes 198 ms total with a 10 ms marginal RPN cost (§IV-A). Historical R-CNN timing uses a different execution pipeline.

Critical Analysis

Strengths:

• Unified pipeline. By replacing an external proposal algorithm with a trainable network, Faster R-CNN creates a single end-to-end system where proposal quality improves jointly with the detector. This coupling between proposal and detection is architecturally clean and enables shared computation.
• Modular design. The two-stage structure separates "where to look" (RPN) from "what is there" (detection head), which makes each component independently improvable. This modularity proved valuable: the same RPN mechanism was reused in Mask R-CNN, Cascade R-CNN, and many others.
• Anchor mechanism. Using pre-defined reference boxes to handle scale and aspect ratio variation avoids the computational cost of image pyramids while maintaining multi-scale coverage. This approach became the standard for anchor-based detectors.
• Strong accuracy. The paper shows strong accuracy against its tested region-based baselines, with shared features and only 300 proposals. That comparison does not establish a universal accuracy advantage over later single-stage detectors.

Limitations:

• Two-stage speed ceiling. Despite the "real-time" claim in the title, Faster R-CNN runs at 5 fps with VGG-16 — far from the 30+ fps typically considered real-time. The RoI head’s work scales with the number of proposals, although proposals can be processed together in a batch; it is not intrinsically sequential. Single-stage detectors like YOLO and SSD later demonstrated that competitive accuracy is achievable at 45+ fps by eliminating the proposal stage entirely.
• Hand-designed anchors. The anchor scales, ratios, and the number of anchors per location are hyperparameters that require manual tuning for each dataset and domain. Objects that do not match any anchor shape (extreme aspect ratios, very small objects) are poorly covered. Later work like CornerNet and FCOS moved toward anchor-free detection to address this.
• NMS dependency. Both stages rely on non-maximum suppression, a greedy post-processing step that can suppress valid detections in crowded scenes. NMS thresholds add another set of hyperparameters, and the hard suppression boundary creates failure cases for overlapping objects of the same class.
• Fixed RoI Pooling. The quantization in RoI Pooling (snapping floating-point coordinates to integer feature map positions) introduces spatial misalignment. This was addressed by RoI Align in Mask R-CNN, which uses bilinear interpolation for sub-pixel accuracy.

Impact and Legacy

Faster R-CNN established the two-stage detection paradigm that dominated object detection from 2015 through approximately 2020. Its influence extends through a clear lineage of descendants:

Mask R-CNN (He et al. 2017) added a parallel segmentation branch to the Fast R-CNN head, producing instance masks alongside class labels and boxes. It also introduced RoI Align, fixing the quantization issue in RoI Pooling. This extended Faster R-CNN from detection to instance segmentation with minimal architectural change — a direct testament to the modularity of the original design.

Feature Pyramid Network (FPN) (Lin et al. 2017) addressed multi-scale detection by building a top-down feature pyramid with lateral connections, generating proposals at multiple feature map resolutions rather than a single one. FPN + Faster R-CNN became the standard baseline for COCO detection.

Cascade R-CNN (Cai & Vasconcelos 2018) stacked multiple detection heads at progressively higher IoU thresholds, refining detections iteratively. This directly built on Faster R-CNN's two-stage structure by extending it to multiple stages.

The anchor-based proposal mechanism also influenced single-stage detectors: SSD and RetinaNet both use anchor boxes inspired by the RPN design but apply them directly for classification without a separate proposal step.

The shift away from Faster R-CNN began with anchor-free methods (CornerNet, CenterNet, FCOS) and transformer-based detectors like DETR, which replaced hand-designed components (anchors, NMS) with learned set prediction. Nonetheless, two-stage detectors with FPN backbones remain competitive on benchmarks where accuracy takes priority over latency.

Related Reading

• YOLO — the single-stage alternative that trades accuracy for real-time speed by eliminating proposals entirely
• DETR — transformer-based detection that removes anchors and NMS in favor of learned set prediction
• Deep Residual Learning — ResNet, which became the standard backbone for Faster R-CNN and its descendants
• Vision Transformer — ViT architecture that later replaced CNN backbones in detection pipelines
• Segment Anything (SAM) — promptable segmentation with an image encoder and mask decoder, a different architecture from the RPN/RoI pipeline
