RT-DETRv2: Improved Baseline with Bag-of-Freebies for Real-Time Detection Transformer

What can improve without making inference larger?

A real-time detector has at least two constraints: it must produce useful boxes, and its operators must execute efficiently on the target runtime. Better training addresses the first constraint. A compatible sampling operator can address the second. Treating both as “free accuracy” obscures the engineering decisions that RT-DETRv2 makes available.

This review follows the July 24, 2024 technical report, version 1, rather than assigning it RT-DETR’s CVPR venue. Its contribution is a set of changes around an existing detector: configurable per-scale reads, an optional discrete sampler, and training adjustments. The official implementation is inspected at revision df2a96c; that later code snapshot is not a reconstruction of the exact July experiment environment.

All six interactive figures use authored diagrams and deterministic calculations. Published accuracy and FPS values are labeled as cited results. There are no recorded checkpoint predictions or newly measured runtimes here. The Python reference checks small forward computations; it does not train a detector.

The review first locates the changes in the inherited architecture, then follows one sampled feature through coordinates and aggregation. That makes the training and benchmark claims easier to assess.

The foundations: where v2 begins

RT-DETR’s original design separates spatial feature processing from object-slot decoding. A backbone supplies a pyramid, a hybrid encoder mixes those features, and selected encoder proposals initialize decoder queries. The decoder gathers image evidence and refines a set of candidate boxes. Set-based supervision supports an end-to-end path without an NMS stage.

The hybrid encoder already addresses a major cost: unrestricted attention across a concatenated high-resolution pyramid. Within-scale interaction and cross-scale fusion have different jobs. The former connects positions at a level; the latter transfers evidence between resolutions. Sparse decoder cross-attention then lets an object query read only a small set of locations. V2 inherits this organization, rather than proposing another encoder or a new matching objective. See the report’s introduction and framework.

A useful boundary is the decoder’s read operator. A query supplies offsets and attention coefficients; a reference box supplies spatial context; the multi-scale memory supplies values. Changing how those reads are distributed and executed leaves much of the detector intact. It does not make every deployment equally fast: the runtime still has to support the remaining graph well.

Feature scale becomes an explicit sampling budget

Suppose every head requests four samples from each of three levels. That creates twelve sampling locations per query per decoder layer, regardless of whether the levels have equal spatial resolution. V2 permits a list of point counts, so that equality is a choice rather than a shape constraint. The official decoder calls this list num_points_list and packs it into a dimension of length P=\sum_l K_l. See the pinned attention module.

There are two distinct experiments to consider. Redistributing a fixed total tests where reads are useful. Reducing the total tests how many reads are needed. A fine-heavy allocation can preserve the total count while changing its spatial emphasis, but the diagram supplies no evidence that this particular allocation improves small-object AP.

Changing counts also changes the parameter shapes of offset and attention-weight predictors. It is not generally a runtime slider that can be applied to any checkpoint without adaptation. Equal counts and variable counts share an operator abstraction; that does not imply arbitrary trained weights are interchangeable.

With zero attention logits, each packed point gets equal softmax mass. A level with twice as many points therefore receives twice as much aggregate mass before learning differentiates their logits. Separate per-level softmax would produce a different operator. This is one reason to test aggregation invariants rather than only tensor sizes.

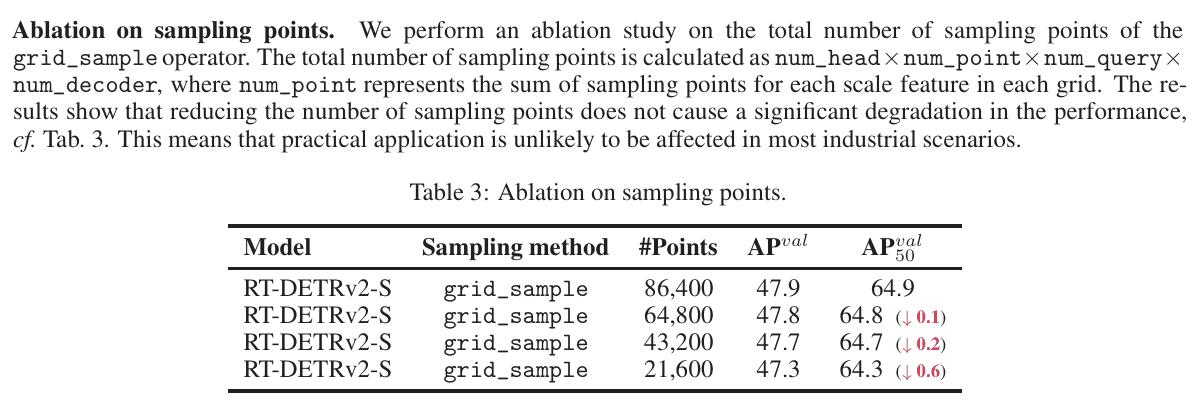

The report’s Table 3 reduces S-model sample counts from 86,400 to 64,800, 43,200 and 21,600; AP changes from 47.9 to 47.8, 47.7 and 47.3. This is an accuracy-versus-sampling-budget ablation. Without per-setting latency measurements, it does not establish proportional speedups or identify the optimal per-level allocation.

Sampling coordinates carry the real operator contract

Different feature resolutions share a normalized image frame. A location (u,v) refers to the same image fraction at each level, but not to the same cell index. For bilinear grid_sample with align_corners=False, the corresponding continuous pixel indices are

A read between cells blends its neighbors. A read at a boundary can blend valid values with out-of-bounds zeros. Surviving weights are not renormalized, so a constant feature map can attenuate at its edges. This is a boundary convention, not an error in the weighted sum.

The detector’s box-reference branch adds another scale. Its offset displacement is proportional to the reference box width and height and inversely proportional to that level’s point count:

Here scale means three different things that should remain separate: spatial feature resolution, reference-box extent, and model capacity. Only the first two participate in this sampling geometry. The official 4D branch supplies the exact normalization used below.

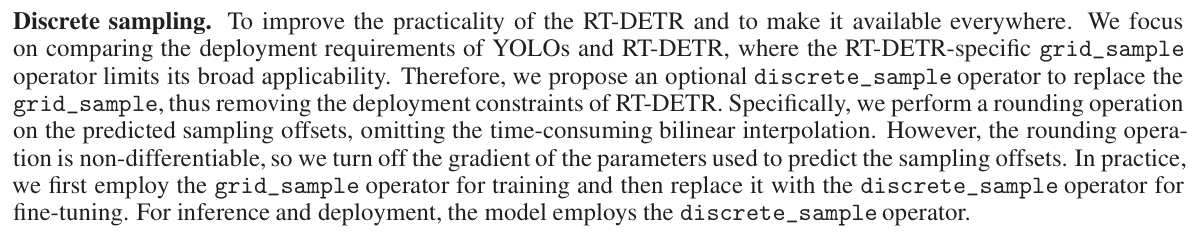

The optional discrete branch deserves more scrutiny than the phrase “replace interpolation with rounding.” The pinned code converts uW+0.5 and vH+0.5 to integers, clamps them and gathers one value. That differs from rounding the bilinear coordinate uW-0.5. In the default 4-by-4 teaching grid, for example, (0.4, 0.4) returns a bilinear mixture but a different discrete cell. At the outer edge, zero padding and clamping differ as well. See the exact utility implementation.

There is also a concrete portability limit in this source snapshot: both discrete coordinate axes are clamped to H−1. The source itself marks rectangle input as a TODO. On a wide map this can exclude valid columns; on a tall map it can leave an invalid horizontal index. Our scalar reference preserves the rule and explicitly rejects an invalid column. Supporting rectangular deployment requires resolving and validating that implementation detail, not merely changing export input dimensions.

Discrete indexing is not smoothly differentiable with respect to offsets. The report describes bilinear pretraining followed by discrete fine-tuning, and the module freezes offset-predictor parameters when discrete mode is selected. Other parameters can still adapt. The report uses a 6× bilinear pretraining schedule followed by 1× discrete fine-tuning; these are schedule multipliers, not six and one literal epochs. Its training setup uses AdamW, total batch size 16 and EMA decay 0.9999 (implementation details). This extra training phase matters when comparing training cost; operator compatibility is not a claim of identical learning dynamics.

The training recipe has its own notion of scale

An augmentation curriculum changes which image distribution the weights see over time. Early variation can encourage robustness; a quieter ending can align optimization with the evaluation input distribution. That rationale is plausible, but a rationale alone does not isolate the contribution of each transform. A controlled experiment would hold optimizer, training length, checkpoint initialization and all other augmentations fixed.

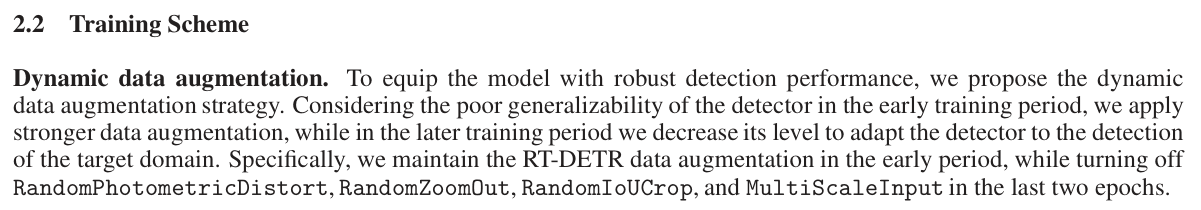

The report disables four operations in its final two epochs: photometric distortion, zoom-out, IoU crop and multi-scale input. Its backbone learning rates for S/M/L/X are 1e−4, 5e−5, 1e−5, 1e−6, with detector rate 1e−4. These are capacity-specific hyperparameters, not a formula for choosing rates at unseen model sizes. Method §2.2 and Table 1.

An important reproducibility check is to compare that description with the released recipe. The pinned R18 120-epoch YAML sets the transform-policy stop to epoch 117 and collator scales to null. With zero-based epochs, the final three epochs start at 117, not the report’s final two. The inherited dataloader lists the transforms and multi-scale policy being overridden. A resolved configuration should accompany a reproduced run.

This distinction prevents a misleading comparison: a repository’s current pretrained model may reflect a released recipe without being the exact training procedure described in a short report. It also prevents confusing an augmentation switch with turning off all augmentation. Resizing, normalization, sanitation and any transforms outside the stopped set must still be accounted for.

Accuracy gains and deployment tradeoffs need separate baselines

The paper’s main comparison retains each model’s reported speed while changing its trained accuracy. The S model gains most; X’s AP does not improve. That pattern is consistent with recipe tuning having unequal value across model capacities, but the aggregate table alone cannot assign the gain to a particular freebie. It would take factorial ablations or carefully staged additions to separate interactions between training changes.

The discrete comparison answers another question: how much accuracy is traded for a different read operator after adaptation? AP50 can hide losses at tighter overlap thresholds. The explorer makes both metrics available, and leaves missing results missing.

The published tables show S improving from 46.5 to 47.9 AP, then reaching 47.4 AP with discrete sampling. AP50 changes from 64.9 to 64.8 between those v2 samplers. Calling that “no accuracy loss” would erase a 0.5-point AP difference. Conversely, a modest aggregate loss may be acceptable for a runtime that cannot deploy the bilinear operator. That choice depends on application error costs, not only a paper leaderboard.

No error bars or repeated-seed distributions accompany these tables. Small differences should not be presented as statistical guarantees. Aggregate COCO AP also does not establish robustness to camera shift, crowded scenes, rare classes or small objects in a specific deployment. The figures are evidence about reported benchmark operating points, not a substitute for target-domain validation.

Fair latency starts with the measurement boundary

Table 2’s protocol is T4, TensorRT FP16, batch one and fixed 640-by-640 input. Hardware, precision, input shape, decoder depth, exporter, engine settings, warmup and synchronization all matter. A comparison that changes one of those can answer a useful engineering question, but it no longer isolates the detector architecture. Original table and protocol.

The latency figure inverts reported FPS and adds an explicitly assumed serial overhead. It does not remeasure the model. A real system may overlap transfers, preprocessing and inference, making throughput depend on the slowest pipeline stage while individual-frame latency still includes multiple stages. Batch throughput and batch-one request latency are different quantities. Neither inverse mean FPS nor a theoretical operation count supplies p95 latency.

A fair deployment report should state whether decoding, resizing, host-to-device transfer, output filtering and synchronization are inside its timed boundary. When comparing NMS-based detectors, include or exclude postprocessing consistently and disclose the choice. End-to-end set prediction removes one algorithmic stage; it does not make all preprocessing, output selection or application logic vanish.

The discrete operator’s motivating benefit is broader deployment compatibility. The report does not supply a target-by-target compatibility matrix or a universal speedup for discrete gathers. Count the saved interpolation work if useful, then measure the actual exported graph on the intended device. Gather layout, precision support and kernel fusion can dominate an arithmetic estimate.

Trace the equations into executable mechanics

The five rows below keep source, mathematical interpretation and executable Python adjacent. They intentionally stop at the operator boundary: offsets and logits are inputs, not outputs of a trained query network. Each region also participates in focused tests, including Python/JavaScript parity and boundary cases. Download the standalone Python reference and its dependency declaration. Run python3 rt-detrv2.py; no checkpoint, GPU or third-party package is needed.

These panels extract five executable regions from the canonical examples/rt-detrv2.py. Run it with Python 3.10+ and no external dependencies. All values are authored arithmetic; no checkpoints, AP evaluations or timings are generated. Official source links are pinned to df2a96c.

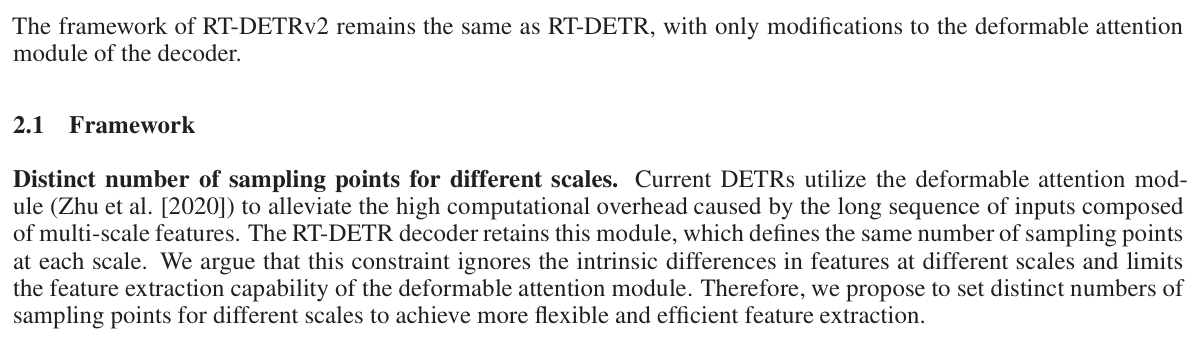

1. Pack variable point counts into one head

Original paper

Enlarge figure

Math and tensor shapes

\begin{aligned}P&=\sum_l K_l\\N_{samples}&=QMDP\end{aligned}

Q is queries, M heads and D decoder layers. Locations have shape [B,Q,M,P,2]; attention weights have shape [B,Q,M,P]. Level boundaries must be retained to split the concatenated samples against the correct spatial map. The scalar helper counts locations only, excluding projections, value channels and interpolation taps.

Inspect corresponding pinned official code

Python implementation

python

def sampling_budget(points, heads=8, queries=300, layers=3):
    """Returns sample locations across heads, queries and decoder layers.

    Args:
        points: Positive per-level integer budgets.
        heads: Attention head count.
        queries: Object query count.
        layers: Decoder layer count.

    Returns:
        Total requested locations, not memory accesses or latency.
    """
    if not points or any(type(n) is not int or n < 1
                         for n in [*points, heads, queries, layers]):
        raise ValueError("Counts must be positive integers")
    return sum(points) * heads * queries * layers

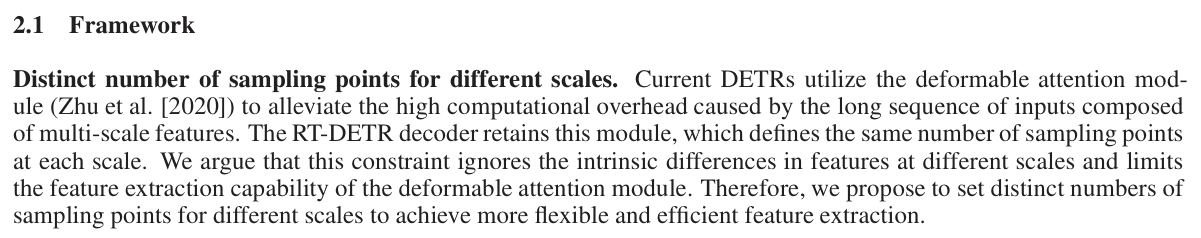

2. Scale offsets with the reference box and each level’s K

Original paper

Enlarge figure

Math and tensor shapes

\begin{aligned}d_{mlk}&=\frac{\Delta p_{mlk}}{K_l}\odot(w,h)\\s_{mlk}&=c+0.5d_{mlk}\end{aligned}

For this 4D reference branch, the same normalized box can be read on different feature resolutions. The per-level 1/K factor is repeated for every point in that level. In upstream, reference boxes enter with a singleton level dimension and broadcast over the packed points. Spatial shapes are [H,W], while normalized coordinates are [u,v]. A point-reference branch has different normalization; this reference intentionally models the detector’s box branch.

Inspect corresponding pinned official code

Python implementation

python

def box_location(box, offset, points):
    """Maps one box-relative offset into normalized image coordinates.

    Args:
        box: Four scalars (cx, cy, width, height).
        offset: Two scalars (dx, dy), supplied rather than learned here.
        points: Positive number of points at this level.

    Returns:
        A normalized (u, v) pair; coordinates are not clamped.
    """
    if (len(box) != 4 or len(offset) != 2
            or not all(math.isfinite(n) for n in [*box, *offset])
            or min(box[2:]) < 0 or type(points) is not int or points < 1):
        raise ValueError("Expected finite box, offset and positive count")
    return [box[axis] + offset[axis] / points * box[axis + 2] * 0.5
            for axis in range(2)]

3. Keep the two sampling contracts separate

Original paper

Enlarge figure

Math and tensor shapes

\begin{aligned}x_{bil}&=uW-\tfrac12\\j&=\operatorname{trunc}(uW+\tfrac12)\\i_{disc}&=\operatorname{clip}(j,0,H-1)\end{aligned}

Bilinear sampling uses four neighbors with zero padding; discrete sampling uses one clamped lookup. Both discrete axes use H−1 in the pinned code. That is a known upstream rectangle TODO, preserved here rather than silently repaired. Consequently the modes need not agree even at bilinear pixel centers. The scalar routine checks forward arithmetic only; it does not implement automatic differentiation or export a deployment graph.

Inspect corresponding pinned official code

Python implementation

python

def sample(grid, u, v, method="bilinear"):
    """Reads a scalar feature map using pinned upstream coordinate rules.

    Discrete sampling retains the upstream height-only clamp. It is not
    nearest-neighbor grid_sample, and rectangular maps can be invalid.
    """
    height = len(grid)
    width = len(grid[0]) if height else 0
    if (not width or not all(len(row) == width for row in grid)
            or not all(math.isfinite(n) for row in grid for n in row)
            or not all(math.isfinite(n) for n in (u, v))):
        raise ValueError("Expected a rectangular finite grid and coordinates")
    if method == "discrete":
        column = min(height - 1, max(0, int(u * width + 0.5)))
        row = min(height - 1, max(0, int(v * height + 0.5)))
        if column >= width:
            raise ValueError("Upstream rectangle clamp yields invalid column")
        return grid[row][column]
    if method != "bilinear":
        raise ValueError("Unknown sampler")
    x, y = u * width - 0.5, v * height - 0.5
    value = 0.0
    for row in (math.floor(y), math.floor(y) + 1):
        for column in (math.floor(x), math.floor(x) + 1):
            if 0 <= row < height and 0 <= column < width:
                weight = (1 - abs(x - column)) * (1 - abs(y - row))
                value += weight * grid[row][column]
    return value

4. Normalize across all levels within a head

Original paper

Enlarge figure

Math and tensor shapes

\begin{aligned}Z_m&=\sum_{l',k'}e^{z_{ml'k'}}\\a_{mlk}&=e^{z_{mlk}}/Z_m\\h_m&=\sum_{l,k}a_{mlk}v(s_{mlk})\end{aligned}

Use one denominator over every level and point. A separate per-level softmax would give every level total mass one and multiply the total mass by the level count. Constant sampled values must stay constant under the mixture, and outputs must lie between the smallest and largest scalar value. Output projection and vector channels are omitted from this helper.

Inspect corresponding pinned official code

Python implementation

python

def aggregate(values, logits):
    """Pools one head over all levels together using stable softmax."""
    if (not values or len(values) != len(logits)
            or not all(math.isfinite(n) for n in [*values, *logits])):
        raise ValueError("Expected aligned nonempty finite arrays")
    exps = [math.exp(n - max(logits)) for n in logits]
    denominator = sum(exps)
    return sum(value * weight / denominator
               for value, weight in zip(values, exps))

5. Make the augmentation boundary explicit

Original paper

Enlarge figure

Math and tensor shapes

\begin{aligned}\operatorname{strong}(e)&=[e<E-2]\\e&\in\{0,\ldots,E-1\}\end{aligned}

This helper encodes the report’s final-two-epoch policy with zero-based epochs. It does not execute image transforms, optimize parameters or claim to reproduce training. The pinned released R18 configuration is a separate recipe: 120 epochs, transform stop at epoch 117, collator scales set to null. Resolve inherited YAML rather than assuming the paper schedule is the current code default.

Inspect corresponding pinned official code

Python implementation

python

def training_phase(epoch, epochs=72, quiet_epochs=2):
    """Returns the report's augmentation phase for a zero-based epoch.

    This models the paper schedule, not the released R18 YAML overrides.
    """
    if (not all(type(n) is int for n in (epoch, epochs, quiet_epochs))
            or epochs < 1 or not 0 <= epoch < epochs
            or not 0 <= quiet_epochs <= epochs):
        raise ValueError("Epoch must be inside the run")
    return "strong" if epoch < epochs - quiet_epochs else "quiet"

Original paper excerpts: Wenyu Lv et al., RT-DETRv2 (arXiv:2407.17140v1). Cropped/rasterized from the original PDF. Source PDF · arXiv distribution license

The practical lesson is to evaluate the changes independently. Per-level budgets provide a design choice. Discrete sampling provides an alternative operator with its own numerical contract and adaptation cost. Training schedules and backbone rates affect learned weights while leaving the deployed graph largely unchanged. Their value should be assessed against a matched baseline and a resolved deployment protocol.
