End-to-End Object Detection with Transformers

TL;DR

DETR reframes object detection as a direct set prediction problem. Instead of the proposal-then-classify pipeline used by Faster R-CNN and its descendants — with anchor boxes, non-maximum suppression, and hand-tuned post-processing — DETR feeds image features through a transformer encoder-decoder and produces a fixed-size set of predictions in a single pass. A bipartite matching loss (the Hungarian algorithm) assigns predictions to ground truth during training, enforcing one-to-one correspondence without any duplicate suppression heuristics. The result matches Faster R-CNN on COCO with a dramatically simpler pipeline, though at the cost of slow training convergence and weaker performance on small objects.

The Core Idea: Detection as Set Prediction

Traditional object detectors generate thousands of overlapping candidate boxes, score each one, then apply non-maximum suppression (NMS) to remove duplicates. Every stage involves hand-designed rules: anchor aspect ratios, IoU thresholds for positive/negative assignment, NMS overlap thresholds. These components are effective but brittle — performance is sensitive to their tuning, and they introduce non-differentiable steps into an otherwise learnable pipeline.

DETR sidesteps all of this by treating detection as a set prediction problem. The model outputs a fixed set of N predictions (where N is chosen to be larger than any expected number of objects in an image, typically 100). Each prediction is either a bounding box with a class label or a special "no object" (\varnothing) token. During training, the Hungarian algorithm finds the optimal one-to-one assignment between predictions and ground truth, and box loss is computed only on object-matched pairs. Every query receives a classification target, with unmatched queries assigned the no-object class.

This formulation gives each ground truth object exactly one training match. It discourages duplicate detections through learning, rather than guaranteeing their absence at inference. The assignment is discrete and computed without gradients; the selected classification and box losses then differentiate through the detector.

Architecture: Backbone + Transformer + FFN

DETR's architecture has three components, each with a clear role.

CNN Backbone. A ResNet (typically ResNet-50) extracts a feature map from the input image. For a 3 \times H \times W input, the backbone produces a feature map f \in \mathbb{R}^{C \times H' \times W'} where C = 2048 and the spatial resolution is reduced by a factor of 32. A 1 \times 1 convolution projects this to a lower dimension d (256 in the paper). The resulting d \times H' \times W' tensor is flattened into a sequence of H'W' tokens, each of dimension d, and augmented with fixed sinusoidal positional encodings that encode spatial location.

Transformer Encoder. The flattened feature sequence passes through a standard transformer encoder (6 layers). Self-attention across all spatial positions allows the encoder to reason about global context — for instance, disambiguating overlapping objects or reasoning about relative scale. The output is a globally-refined feature sequence of the same shape.

Transformer Decoder. The decoder starts with zero content for N slots. Learned object queries provide positional embeddings added to attention queries and keys; cross-attention then reads the encoded image features. Each object query is a learned d-dimensional embedding that the model trains to specialize for detecting objects in particular spatial regions, scales, or categories. The decoder applies self-attention across queries (so they can coordinate to avoid duplicates) followed by cross-attention to the encoder output. After 6 decoder layers, each query has aggregated the image information it needs.

Prediction Heads (FFN). Two small feed-forward networks operate independently on each decoder output. One predicts the class label (including \varnothing for "no object"), and the other predicts a normalized bounding box as a 4-tuple (c_x, c_y, w, h) representing center coordinates, width, and height relative to the image size.

Hungarian Matching: The Training Signal

The central technical challenge is defining a loss for unordered set prediction. With N predictions and M ground truth objects (where M \ll N), we need to decide which prediction is responsible for which ground truth before we can compute any loss.

DETR solves this with bipartite matching. Let \hat{\sigma} denote a permutation of N elements. The optimal assignment minimizes the total matching cost:

where y_i is the i-th ground truth (padded with \varnothing to length N) and \hat{y}_{\sigma(i)} is the prediction assigned to it. The pairwise matching cost for a ground truth object with class c_i and box b_i is:

The first term rewards high predicted probability for the correct class. The second term penalizes box misalignment. This is solved exactly in O(N^3) time by the Hungarian algorithm — fast enough since N = 100.

Once the optimal assignment \hat{\sigma} is found, the actual training loss is computed over all matched pairs:

The box loss combines an L1 term with a generalized IoU (GIoU) loss for scale-invariant regression:

GIoU is important because L1 loss alone penalizes small and large box errors equally in absolute terms, while IoU-based losses are scale-invariant.

Object Queries and Parallel Decoding

A distinctive feature of DETR is its parallel decoding via object queries. Unlike autoregressive detectors that predict objects sequentially, DETR predicts all N objects simultaneously in a single decoder forward pass. Each object query attends independently to the full image, and queries coordinate through self-attention.

In practice, the learned object queries develop spatial specialization. Visualization of trained queries shows that individual queries tend to focus on specific image regions and object sizes — one query might specialize in large objects near the image center, while another handles small objects in the bottom-left corner. This is an emergent behavior; the queries are randomly initialized and learn their specializations entirely from data.

The parallel decoding is a significant architectural advantage. Autoregressive approaches (such as Pix2Seq) must predict objects in some arbitrary order, which introduces sequential dependencies and slows inference. DETR's parallel formulation makes inference time independent of the number of objects.

Implementation

The parallel slots become useful only when the implementation preserves their position/content distinction and assigns the set loss correctly. Follow that path below, then compare the genuine pretrained outputs with the paper’s evaluation.

Follow eight operations from pixels to set loss. The downloadable CPU example is random-weight training mechanics: a tiny CNN, width 32, one encoder and decoder layer, eight queries, and three foreground classes. It performs a real optimizer step, without pretrained semantics or a COCO benchmark claim. It omits auxiliary decoder losses, dropout, and distributed normalization. The separate photo export below runs the original trained DETR ResNet50 checkpoint with the full architecture.

Training program · Pinned requirements · Native exporter · Licensed native source · Source hashes · Reproduction instructions

python detr_training.py --smoke

Smoke is offline and requires only PyTorch. For genuine inference, extract the native source ZIP beside the exporter and download the checkpoint linked in the instructions. The exporter verifies source and checkpoint hashes, builds ResNet50 without downloading classifier weights, and strictly loads every detector tensor. A documented import adapter retains native model bodies while skipping training-only packages.

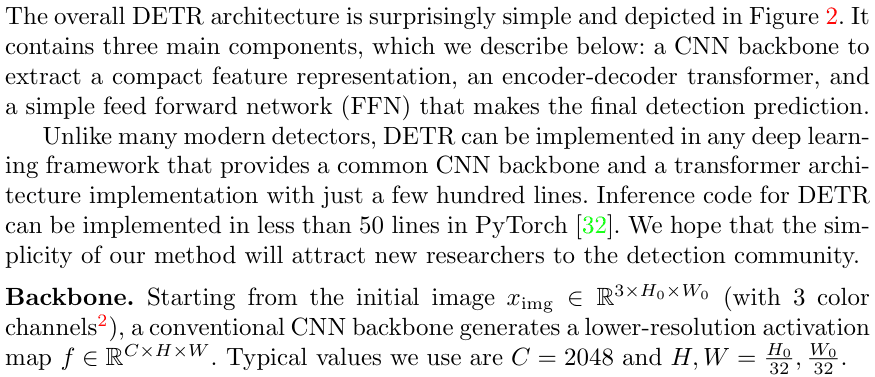

1. Keep spatial features and padding together

Original paper

Enlarge figure

Math and tensor shapes

z=\operatorname{flatten}(W_{1\times1}f)

z\in\mathbb{R}^{B\times HW\times d}

The reduced CNN has stride 4. Original R50 has stride 32 and 2048 channels, projected to 256. True marks padded keys; nearest-neighbor resizing follows the native backbone mask rule.

Smoke: [2,3,32,40] → [2,32,8,10] → [2,80,32]

Exact official implementation

Python implementation

python

batch, padding = padded_batch(images)
features = self.projection(self.backbone(batch))
mask = F.interpolate(
    padding[:, None].float(), size=features.shape[-2:], mode="nearest"
)[:, 0].bool()
positions = spatial_positions(mask, self.dim)
source = features.flatten(2).transpose(1, 2)
padding_keys = mask.flatten(1)

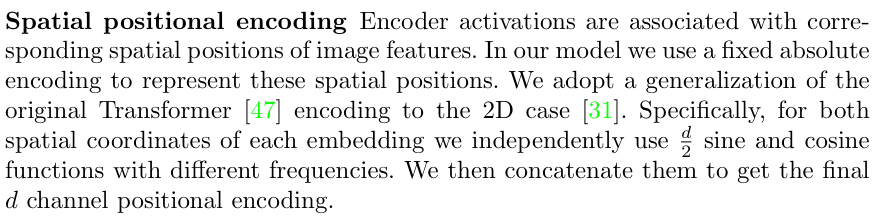

2. Encode two normalized spatial coordinates

Original paper

Enlarge figure

Math and tensor shapes

y=2\pi\,\operatorname{cumsum}(1-m)/s_y

\omega_k=10000^{2\lfloor k/2\rfloor/(d/2)}

The x axis is handled analogously. Each axis uses half the channels; alternating sine/cosine uses the corresponding frequency. s_y is the last cumulative y value plus 10⁻⁶. Positions enter attention queries and keys, not values.

Mask [B,H,W] → positions [B,HW,d]

Exact official implementation

Python implementation

python

def spatial_positions(mask, dim):
    """Encode cumulative valid x/y coordinates, normalized to 2 pi."""
    if dim < 4 or dim % 4 or mask.ndim != 3 or mask.dtype != torch.bool:
        raise ValueError("Width must be divisible by four; mask is bool BHW.")
    valid = ~mask
    y = valid.cumsum(1, dtype=torch.float32)
    x = valid.cumsum(2, dtype=torch.float32)
    y = y / (y[:, -1:, :] + 1e-6) * (2 * math.pi)
    x = x / (x[:, :, -1:] + 1e-6) * (2 * math.pi)
    frequencies = torch.arange(dim // 2, device=mask.device)
    frequencies = 10000 ** (2 * (frequencies // 2) / (dim // 2))

    def encode(coordinates):
        phase = coordinates[..., None] / frequencies
        return torch.stack(
            (phase[..., 0::2].sin(), phase[..., 1::2].cos()), -1
        ).flatten(-2)

    return torch.cat((encode(y), encode(x)), -1).flatten(1, 2)

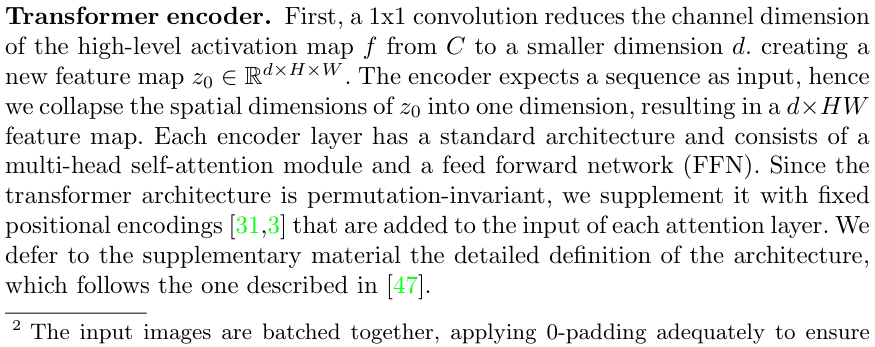

3. Let image tokens exchange context

Original paper

Enlarge figure

Math and tensor shapes

Q=z+p,\quad K=z+p,\quad V=z

A=\operatorname{softmax}(QK^T/d_h^{1/2})V

Q, K, V above denote inputs to the learned head projections. Padding keys are excluded before softmax. The example uses one encoder layer and no dropout; the released model uses six layers.

Smoke memory [2,80,32]; full model width 256, 8 heads

Exact official implementation

Python implementation

python

encoded = self.encoder_attention(
    source + positions,
    source + positions,
    source,
    key_padding_mask=padding_keys,
    need_weights=False,
)[0]
memory = self.norms[0](source + encoded)
memory = self.norms[1](memory + self.encoder_ffn(memory))

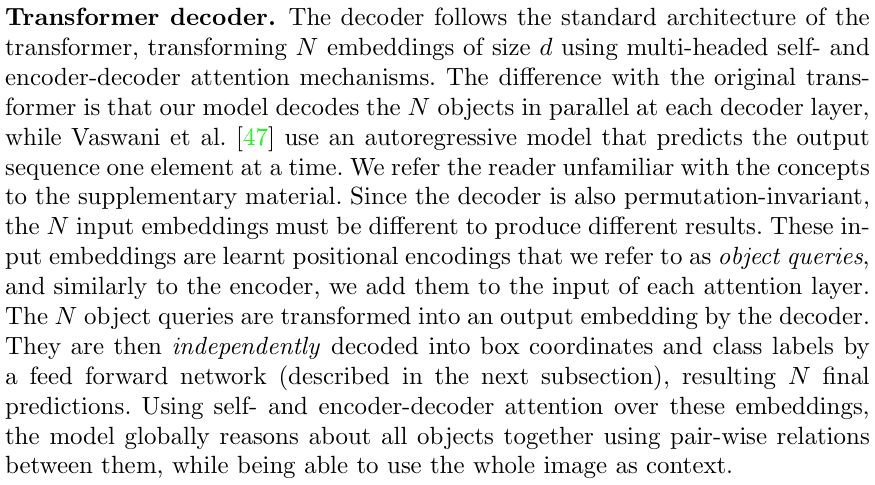

4. Start with zero content and learned query positions

Original paper

Enlarge figure

Math and tensor shapes

t_0=0,\quad q\in\mathbb{R}^{N\times d}

Q_{cross}=t+q

K_{cross}=M+p,\quad V_{cross}=M

There is no causal mask: slots decode in parallel. Cross-attention reads encoder memory M and ignores padded keys. The example has one decoder layer; full DETR has six and adds auxiliary training losses after intermediate layers.

Smoke [2,8,32]; released decoder [B,100,256]

Exact official implementation

Python implementation

python

query_pos = self.query_positions.weight[None].expand(
    len(images), -1, -1
)
target = torch.zeros_like(query_pos)
update = self.query_attention(
    target + query_pos, target + query_pos, target, need_weights=False
)[0]
target = self.norms[2](target + update)
update = self.cross_attention(
    target + query_pos,
    memory + positions,
    memory,
    key_padding_mask=padding_keys,
    need_weights=False,
)[0]
target = self.norms[3](target + update)
target = self.norms[4](target + self.decoder_ffn(target))
target = self.norms[5](target)

5. Predict a class and normalized box for every slot

Original paper

Enlarge figure

Math and tensor shapes

p=\operatorname{softmax}(Wt+b)

\hat b=\operatorname{sigmoid}(\operatorname{MLP}(t))

Boxes are (cx, cy, width, height), relative to each unpadded image. Native COCO uses category IDs through 90, including unused ID slots, plus no-object at index 91. Sigmoid bounds cxcywh, but converted corners can lie outside the image.

Smoke logits [2,8,4], boxes [2,8,4]; native logits [1,100,92]

Exact official implementation

Python implementation

python

logits = self.class_head(target)
boxes = self.box_head(target).sigmoid()
return {"pred_logits": logits, "pred_boxes": boxes}

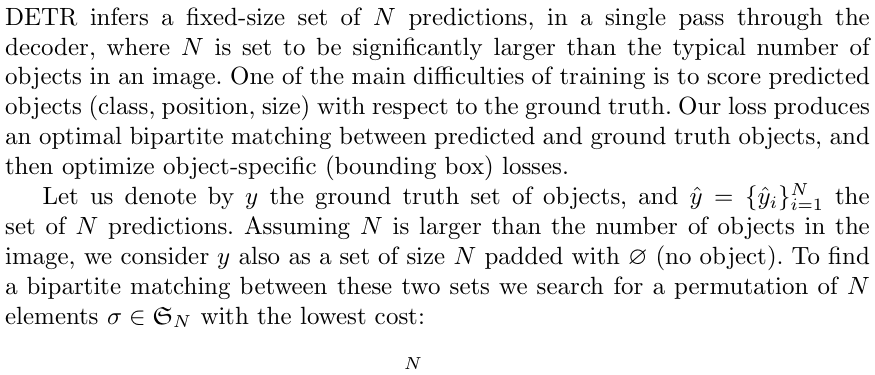

6. Solve one exact assignment before differentiating

Original paper

Enlarge figure

Math and tensor shapes

C_{ji}=-p_j(c_i)+5d_{ji}-2g_{ji}

d_{ji}=\lVert\hat b_j-b_i\rVert_1

\sigma=\arg\min_\sigma\sum_i C_{\sigma(i),i}

g is pairwise GIoU in corner coordinates. The downloadable program implements rectangular Hungarian matching with dual potentials and augmenting paths, checked against exhaustive small permutations. Matching runs under no_grad; it uses probability, not negative log probability.

Cost [N,M], M ≤ N; return M unique query/target pairs

Exact official implementation

Python implementation

python

@torch.no_grad()
def match_predictions(outputs, targets):
    """Choose discrete pairs using foreground probability, L1 and GIoU."""
    validate_targets(outputs, targets)
    assignments = []
    for logits, boxes, truth in zip(
        outputs["pred_logits"], outputs["pred_boxes"], targets
    ):
        cost_class = -logits.softmax(-1)[:, truth["labels"]]
        cost_l1 = torch.cdist(boxes, truth["boxes"], p=1)
        cost_giou = -generalized_iou(
            cxcywh_to_xyxy(boxes), cxcywh_to_xyxy(truth["boxes"])
        )
        cost = cost_class + 5 * cost_l1 + 2 * cost_giou
        assignments.append(hungarian(cost))
    return assignments

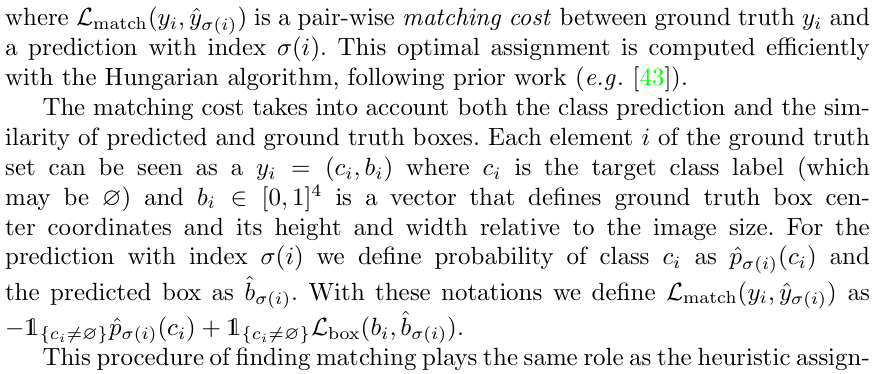

7. Supervise matched boxes and every query class

Original paper

Enlarge figure

Math and tensor shapes

L_{cls}=\frac{\sum_j w_{c_j}(-\log p_j(c_j))}{\sum_j w_{c_j}}

w_\varnothing=0.1,\quad w_{object}=1

L=L_{cls}+5L_1+2L_{GIoU}

The CE denominator sums selected label weights, rather than counting queries. An empty-target batch still trains classification while both box losses are zero. Gradients flow into selected box tensors and all class logits. The smoke command then runs AdamW.

CE labels [B,N]; box sums / max(total targets, 1)

Exact official implementation

Python implementation

python

def set_loss(outputs, targets, eos_weight=0.1):
    """Differentiate selected predictions, not the Hungarian assignment."""
    if not math.isfinite(eos_weight) or eos_weight <= 0:
        raise ValueError("No-object weight must be finite and positive.")
    assignments = match_predictions(outputs, targets)
    logits, boxes = outputs["pred_logits"], outputs["pred_boxes"]
    classes = logits.shape[-1] - 1
    labels = torch.full(
        logits.shape[:2], classes, dtype=torch.long, device=logits.device
    )
    l1, giou = boxes.sum() * 0, boxes.sum() * 0
    for batch, (queries, objects) in enumerate(assignments):
        labels[batch, queries] = targets[batch]["labels"][objects]
        predicted, truth = (
            boxes[batch, queries],
            targets[batch]["boxes"][objects],
        )
        l1 = l1 + F.l1_loss(predicted, truth, reduction="sum")
        giou = (
            giou
            + (
                1
                - generalized_iou(
                    cxcywh_to_xyxy(predicted), cxcywh_to_xyxy(truth)
                ).diag()
            ).sum()
        )
    weights = logits.new_ones(classes + 1)
    weights[-1] = eos_weight
    ce = F.cross_entropy(logits.transpose(1, 2), labels, weight=weights)
    count = max(sum(len(t["labels"]) for t in targets), 1)
    return {
        "ce": ce,
        "l1": l1 / count,
        "giou": giou / count,
        "total": ce + 5 * l1 / count + 2 * giou / count,
    }

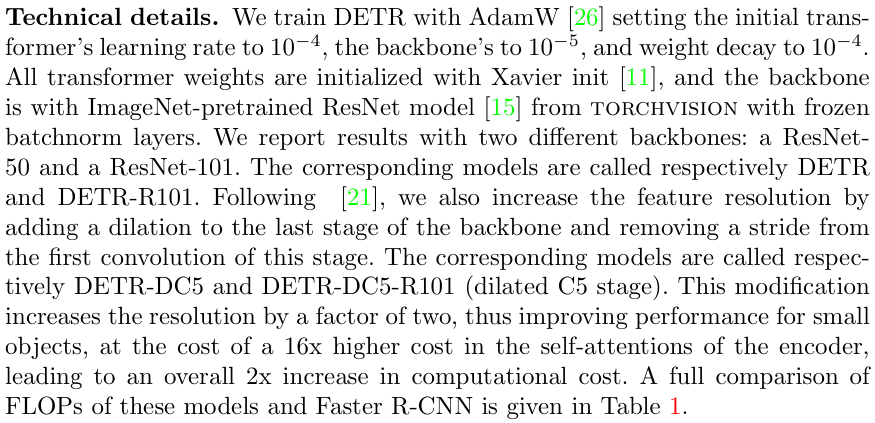

8. Convert all queries to pixels without NMS

Original paper

Enlarge figure

Math and tensor shapes

s_j=\max_{c\ne\varnothing}p_j(c)

b_{pixel}=b_{xyxy}\odot(W,H,W,H)

Softmax still includes no-object before foreground selection. There is no NMS, and numeric outputs are not clipped. The display below uses score > 0.7 and clips drawn rectangles only. That threshold is a viewing choice, not a benchmark protocol.

Native 100 queries → 100 scores, class IDs and pixel boxes

Exact official implementation

Python implementation

python

@torch.no_grad()
def postprocess(outputs, original_sizes):
    """Keep every query, choose best foreground class; no NMS or clipping."""
    probability = outputs["pred_logits"].softmax(-1)
    scores, labels = probability[..., :-1].max(-1)
    sizes = torch.as_tensor(
        original_sizes, device=scores.device, dtype=scores.dtype
    )
    if (
        sizes.shape != (len(scores), 2)
        or not torch.isfinite(sizes).all()
        or (sizes <= 0).any()
    ):
        raise ValueError(
            "Original sizes must be positive B by 2 (height,width)."
        )
    height, width = sizes.unbind(-1)
    scale = torch.stack((width, height, width, height), -1)
    boxes = cxcywh_to_xyxy(outputs["pred_boxes"]) * scale[:, None]
    return {"scores": scores, "labels": labels, "boxes": boxes}

Inspect genuine DETR query outputs

These are saved outputs from the original R50 model, with all 100 slots available for inspection. The overlays show scores above 0.7. Original corner coordinates can extend outside the photograph; only drawn rectangles are clipped. Arrays and numbers retain native coordinates. COCO category IDs 17, 47 and 51 denote cat, cup and bowl. Scores are model softmax outputs, not calibrated confidence guarantees.

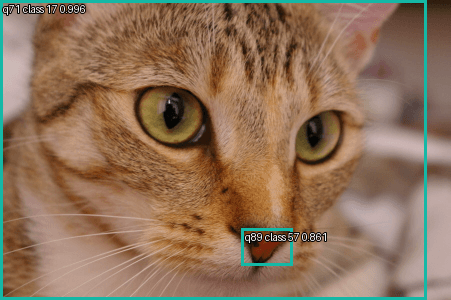

Chelsea the cat

Inspect any native queryQuery 0: class 17, 0.0010Query 1: class 17, 0.0011Query 2: class 65, 0.0013Query 3: class 1, 0.0002Query 4: class 17, 0.0015Query 5: class 17, 0.0053Query 6: class 57, 0.0024Query 7: class 17, 0.0012Query 8: class 1, 0.0024Query 9: class 1, 0.0022Query 10: class 17, 0.0010Query 11: class 17, 0.0034Query 12: class 17, 0.0004Query 13: class 17, 0.0006Query 14: class 65, 0.0004Query 15: class 65, 0.0014Query 16: class 1, 0.0007Query 17: class 1, 0.0003Query 18: class 17, 0.0006Query 19: class 17, 0.0005Query 20: class 17, 0.0014Query 21: class 17, 0.0007Query 22: class 17, 0.0012Query 23: class 17, 0.0001Query 24: class 17, 0.0007Query 25: class 17, 0.0013Query 26: class 17, 0.0017Query 27: class 17, 0.0083Query 28: class 17, 0.0001Query 29: class 17, 0.0014Query 30: class 17, 0.0020Query 31: class 57, 0.0012Query 32: class 85, 0.0004Query 33: class 17, 0.0005Query 34: class 17, 0.0036Query 35: class 57, 0.0032Query 36: class 17, 0.0004Query 37: class 17, 0.0013Query 38: class 57, 0.0031Query 39: class 17, 0.0005Query 40: class 17, 0.0019Query 41: class 17, 0.0057Query 42: class 17, 0.0014Query 43: class 17, 0.0033Query 44: class 17, 0.0007Query 45: class 17, 0.0119Query 46: class 17, 0.0006Query 47: class 57, 0.0021Query 48: class 65, 0.0009Query 49: class 17, 0.0012Query 50: class 1, 0.0006Query 51: class 17, 0.0096Query 52: class 73, 0.0008Query 53: class 17, 0.0074Query 54: class 17, 0.0005Query 55: class 17, 0.0107Query 56: class 17, 0.0012Query 57: class 57, 0.0029Query 58: class 17, 0.0082Query 59: class 17, 0.1884Query 60: class 1, 0.0008Query 61: class 17, 0.0085Query 62: class 1, 0.0014Query 63: class 1, 0.0014Query 64: class 1, 0.0003Query 65: class 73, 0.0012Query 66: class 1, 0.0014Query 67: class 17, 0.0087Query 68: class 1, 0.0025Query 69: class 65, 0.0016Query 70: class 1, 0.0010Query 71: class 17, 0.9965Query 72: class 17, 0.0058Query 73: class 17, 0.0003Query 74: class 65, 0.0016Query 75: class 17, 0.0017Query 76: class 17, 0.0009Query 77: class 74, 0.0007Query 78: class 65, 0.0009Query 79: class 1, 0.0009Query 80: class 17, 0.0005Query 81: class 17, 0.0007Query 82: class 17, 0.0012Query 83: class 1, 0.0009Query 84: class 17, 0.0010Query 85: class 17, 0.0003Query 86: class 17, 0.0003Query 87: class 17, 0.0003Query 88: class 17, 0.0010Query 89: class 57, 0.8611Query 90: class 17, 0.0007Query 91: class 17, 0.0024Query 92: class 17, 0.0019Query 93: class 57, 0.0027Query 94: class 57, 0.0024Query 95: class 65, 0.0007Query 96: class 1, 0.0011Query 97: class 1, 0.0016Query 98: class 17, 0.0057Query 99: class 17, 0.0096

Score 0.996481 · COCO ID 17

Normalized (cx, cy, w, h): 0.4733, 0.5000, 0.9453, 0.9996

Original pixel corners: 0.29, 0.04, 426.60, 299.94

Photo: Stefan van der Walt, CC0. Pinned photo · License · Exact normalized input and all query arrays

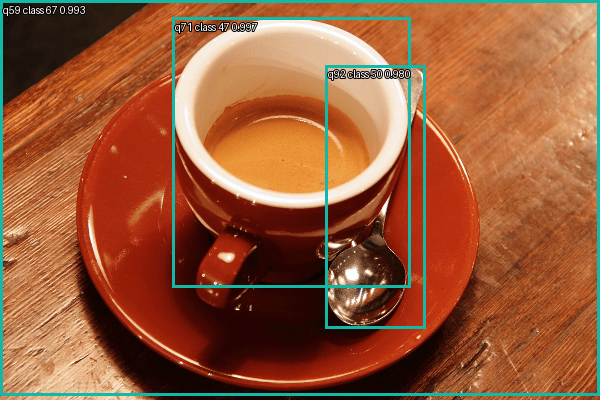

Cup of coffee

Inspect any native queryQuery 0: class 50, 0.0000Query 1: class 50, 0.0017Query 2: class 67, 0.0000Query 3: class 50, 0.0023Query 4: class 47, 0.0015Query 5: class 50, 0.0361Query 6: class 50, 0.0003Query 7: class 50, 0.0003Query 8: class 51, 0.0001Query 9: class 67, 0.0002Query 10: class 50, 0.2931Query 11: class 67, 0.0001Query 12: class 51, 0.0007Query 13: class 50, 0.0026Query 14: class 50, 0.0002Query 15: class 67, 0.0003Query 16: class 67, 0.0004Query 17: class 50, 0.0004Query 18: class 50, 0.0003Query 19: class 51, 0.0022Query 20: class 50, 0.0007Query 21: class 50, 0.0001Query 22: class 67, 0.0001Query 23: class 48, 0.0001Query 24: class 50, 0.0001Query 25: class 50, 0.0001Query 26: class 50, 0.0003Query 27: class 50, 0.0005Query 28: class 51, 0.0001Query 29: class 67, 0.0000Query 30: class 50, 0.0000Query 31: class 50, 0.0002Query 32: class 67, 0.0000Query 33: class 50, 0.0006Query 34: class 51, 0.0003Query 35: class 51, 0.0010Query 36: class 50, 0.0004Query 37: class 51, 0.0005Query 38: class 50, 0.0008Query 39: class 50, 0.0001Query 40: class 50, 0.0004Query 41: class 51, 0.0004Query 42: class 51, 0.0001Query 43: class 50, 0.0010Query 44: class 67, 0.0000Query 45: class 51, 0.0436Query 46: class 50, 0.0001Query 47: class 50, 0.0024Query 48: class 67, 0.0001Query 49: class 50, 0.0003Query 50: class 51, 0.0013Query 51: class 50, 0.0003Query 52: class 50, 0.0003Query 53: class 51, 0.0010Query 54: class 50, 0.0004Query 55: class 50, 0.0011Query 56: class 50, 0.0002Query 57: class 50, 0.0029Query 58: class 51, 0.0005Query 59: class 67, 0.9925Query 60: class 51, 0.0003Query 61: class 51, 0.0008Query 62: class 67, 0.0001Query 63: class 67, 0.0002Query 64: class 51, 0.0011Query 65: class 50, 0.0004Query 66: class 67, 0.0003Query 67: class 67, 0.0002Query 68: class 51, 0.0011Query 69: class 51, 0.0001Query 70: class 50, 0.0001Query 71: class 47, 0.9975Query 72: class 51, 0.0023Query 73: class 50, 0.0046Query 74: class 50, 0.0014Query 75: class 50, 0.0001Query 76: class 67, 0.0000Query 77: class 50, 0.0000Query 78: class 51, 0.0016Query 79: class 67, 0.0000Query 80: class 50, 0.0004Query 81: class 50, 0.0001Query 82: class 51, 0.0002Query 83: class 47, 0.0013Query 84: class 50, 0.0007Query 85: class 48, 0.0001Query 86: class 50, 0.0001Query 87: class 50, 0.0006Query 88: class 51, 0.0001Query 89: class 50, 0.0004Query 90: class 50, 0.0003Query 91: class 50, 0.0002Query 92: class 50, 0.9796Query 93: class 50, 0.0056Query 94: class 50, 0.0045Query 95: class 50, 0.0002Query 96: class 67, 0.0000Query 97: class 50, 0.0009Query 98: class 50, 0.0001Query 99: class 50, 0.0036

Score 0.992541 · COCO ID 67

Normalized (cx, cy, w, h): 0.4998, 0.4956, 0.9999, 0.9864

Original pixel corners: -0.11, 0.96, 599.83, 395.53

Photo: Rachel Michetti, CC0. Pinned photo · License · Exact normalized input and all query arrays

Full provenance and numeric record. Native revision 29901c51d7fe8712168b8d0d64351170bc0f83e0; torch 2.12.0+cpu, CPU, two threads. Scores, labels, and boxes match the original postprocessor exactly on both images. RGB images use bilinear short-side 800 / maximum-long-side 1333 resizing, ImageNet normalization, and no crop. Two photos demonstrate inference; they do not measure detection accuracy.

Key Results

On COCO 2017, DETR with a ResNet-50 backbone achieves 42.0 AP, matching Faster R-CNN with the same backbone (42.0 AP) after extensive hyperparameter tuning of the latter. The ResNet-50 DC5 variant reaches 43.3 AP, ResNet-101 reaches 43.5 AP, and ResNet-101 DC5 reaches 44.9 AP (Table 1).

However, the AP breakdown by object size reveals a clear pattern:

• Large objects (AP_L): DETR significantly outperforms Faster R-CNN (61.1 vs 53.4 for the tuned R50 Faster R-CNN-FPN+ baseline), likely because the transformer's global self-attention captures long-range context that region-based methods miss.
• Small objects (AP_S): DETR underperforms (20.5 vs 26.6 for that same baseline). The 32x spatial downsampling in the backbone discards fine-grained information that small object detection requires. Feature pyramid networks (FPN), standard in Faster R-CNN variants, are absent from the original DETR.

DETR also demonstrates strong panoptic segmentation results, achieving 43.4 PQ with R50, 44.6 PQ with R50-DC5, and 45.1 PQ with R101 on COCO panoptic (Table 5) by simply adding a segmentation head on top of the decoder outputs — evidence that the architecture generalizes beyond bounding box detection.

Critical Analysis

Strengths.

• Eliminates NMS, anchor boxes, and all hand-designed post-processing. The detection pipeline reduces to backbone + transformer + FFN + Hungarian matching.
• End-to-end detector training with a set prediction loss. The exact discrete assignment is detached; gradients flow through losses on the selected predictions.
• Global reasoning via self-attention handles occlusion and context naturally. This directly explains the strong AP_L performance.
• The architecture generalizes to panoptic segmentation with minimal modification.
• Object queries provide a natural mechanism for parallel decoding with no ordering assumptions.

Limitations.

• Slow convergence. The paper uses 300 epochs for ablations (3 days on 16 V100 GPUs) and 500 epochs for the main Faster R-CNN comparison. Its tuned Faster R-CNN baseline uses a 109-epoch (9x) schedule, beyond the standard 36-epoch (3x) baseline (§4 technical details). The cross-attention mechanism must learn to attend to the right image regions from scratch, without the spatial priors that anchors provide.
• Weak on small objects. The single-scale feature map at 1/32 resolution cannot represent objects smaller than a few pixels in feature space. Multi-scale feature pyramids, standard in modern detectors, are not used.
• Fixed query count. The number of object queries N must be set as a hyperparameter and must exceed the maximum number of objects in any training image. Setting it too high wastes computation; too low causes missed detections.
• High memory cost. Self-attention over all spatial tokens is O((H'W')^2) in memory, which limits the input resolution and makes high-resolution feature maps impractical.

Follow-Up Work

Deformable DETR (Zhu et al., ICLR 2021) directly addresses the convergence and small-object problems. It replaces standard attention with deformable attention, where each query attends to only a small set of learned sampling points rather than all spatial locations. This reduces complexity from O((H'W')^2) to O(H'W' \cdot K) where K is the number of sampling points (typically 4). Combined with multi-scale features, Deformable DETR uses a 50-epoch schedule versus 500 epochs for original DETR in the paper’s comparison (10× fewer training epochs), and improves small-object AP (§5.1).

DAB-DETR (Liu et al., ICLR 2022) reinterprets object queries as dynamic anchor boxes — 4D coordinates (c_x, c_y, w, h) that are iteratively refined across decoder layers. This provides an explicit spatial prior, accelerating convergence and improving interpretability.

DINO detector (Zhang et al., ICLR 2023) combines deformable attention, contrastive denoising training, and a mixed query selection strategy. With a Swin-L backbone and Objects365 pretraining, it reaches 63.2 AP on COCO val2017, leading the reported leaderboard at publication (DINO paper). This result demonstrated the competitiveness of DETR-style architectures when scaled with larger backbones and additional pretraining data.

RT-DETR (Lv et al., 2023) focuses on real-time deployment, achieving strong accuracy-speed trade-offs without NMS by building an efficient hybrid encoder and uncertainty-aware query selection.

Impact and Legacy

DETR's contribution is primarily conceptual rather than metric-driven. Its COCO numbers merely matched Faster R-CNN, but it demonstrated that object detection could be formulated as a clean set prediction problem without any detection-specific inductive biases (anchors, NMS, proposal generation). This was a paradigm shift.

The practical impact materialized through follow-up work. By 2023, DINO-based detectors held state-of-the-art on COCO, and the DETR formulation had been extended to instance segmentation (Mask DINO), 3D detection (DETR3D), multi-object tracking (TrackFormer, MOTR), and visual grounding (MDETR). The "set prediction with Hungarian matching" paradigm now underlies a significant fraction of modern detection and segmentation systems.

DETR also influenced the broader trend of replacing task-specific architectures with general-purpose transformer-based designs. SAM's prompt-based segmentation, for instance, uses a decoder structure clearly descended from DETR's object query mechanism.

Related Reading

• Deformable DETR follows the sparse multi-scale attention mechanism; DINO detector follows query initialization and denoising; LW-DETR follows the lightweight architecture that RF-DETR builds on.

• Faster R-CNN — the dominant two-stage detector that DETR was benchmarked against, with region proposals, anchor boxes, and NMS

• YOLO — single-stage detection with grid-based prediction, a different approach to eliminating the proposal stage

• Attention Is All You Need — the transformer architecture that DETR adapts from NLP to vision

• Vision Transformer — ViT's approach to applying transformers to images, which shares DETR's insight that self-attention can replace spatial inductive biases

• Segment Anything (SAM) — prompt-based segmentation using a decoder architecture descended from DETR's object query mechanism

• RF-DETR — a modern DETR-family detector connecting pretrained visual features, architecture search, query budgets, and instance segmentation
