DINO: DETR with Improved DeNoising Anchor Boxes for End-to-End Object Detection

Sparse reads leave a learning problem

Deformable DETR makes image access selective: a query reads a small set of locations around a reference instead of comparing against every image token. That makes localization more tractable, but it leaves a different question open. What should each query look for at the start, and how does it learn to claim one object without competing indefinitely with nearby queries?

DINO addresses that learning problem through the initialization and supervision of queries. This review concerns the object detector, published at ICLR 2023, with its first preprint in 2022. It is separate from self-supervised DINO. The DINOv2 backbone used later in RF-DETR belongs to that self-supervised representation-learning family, not to this detector's denoising method. The names overlap; the training problems do not. See the detector's official repository and RF-DETR §3.

The useful starting point is to separate a query's spatial prior from its content. Once those are distinct, three design choices become easier to follow: choosing better starting anchors, training reconstruction and rejection together, and letting the next layer's box loss improve an earlier refinement.

An anchor says where; content gathers evidence

A decoder slot carries a content vector and a spatial reference. Content is updated as the decoder gathers image information. The anchor specifies a region to read and refine. Treating these as separate objects avoids a common misunderstanding: selecting a promising encoder location does not require copying that location's feature vector into every part of the decoder query.

The predecessor DAB-DETR makes the positional part concrete with dynamic four-dimensional anchor boxes. A normalized anchor is (c_x,c_y,w,h), so it describes extent as well as center. Refinement moves that box across decoder layers. This is an inherited mechanism, not a claim that DINO invented all box-based query representations.

Inspect two slots in the figure. Their anchor coordinates and content vectors have different roles and different dimensions in a real detector. The two-element bars are deliberately small stand-ins for learned embeddings. Neither slot number nor vector position is an object identity: the set-prediction assignment determines which target, if any, supervises a matching query on this image. The same slot can serve a different target on another image.

Mixed initialization chooses only the spatial prior

The official transformer implementation ranks encoder predictions, gathers their reference boxes and initializes the decoder content from learned embeddings. The selection is image dependent; the initial content embedding is not an encoder feature copied from the selected location.

For encoder candidates indexed by j, write the construction schematically as

Here s_j is a ranking score, a_q is the selected anchor, and e_q is the learned content for decoder slot q. Positional encodings and learned transformations are omitted from this notation so the provenance of each input remains visible. Top-K does not perform non-maximum suppression: two highly ranked, overlapping candidates may both enter the decoder.

Increasing K adds slots; it does not turn their learned content into image-dependent encoder features. The schematic alternative in the figure transfers both kinds of information. That contrast is useful because a strong location score does not guarantee a complete description of an object: the corresponding feature can cover a fragment or multiple objects. Mixed selection uses the location as a starting point and lets the decoder gather content around it. The mechanism is described in DINO §3.4, Figure 5.

A better start still does not give a new query a stable learning target. That is the purpose of the training-only denoising branch.

Denoising provides targets before matching settles

For ordinary matching queries, the assignment between predictions and objects can change as training progresses. DN-DETR adds noisy copies of known labels and boxes and asks the model to reconstruct their targets. Their correspondence is already known, so this auxiliary task supplies supervision without solving a fresh matching problem for those copies. Ordinary matching supervision remains present.

DINO extends that idea with contrastive denoising, abbreviated CDN. Each target has a nearby positive copy and a harder negative counterpart in each denoising group. Positives learn the target class and box. Negatives learn background. “Contrastive” here describes this reconstruction-versus-rejection training arrangement; it is not an embedding similarity objective with an InfoNCE denominator.

The paper describes nested noise bands with \lambda_1<\lambda_2. The official CDN sampler implements a concrete corner perturbation: each positive corner magnitude uses u\in[0,1], each negative uses 1+u, and both are multiplied by a random sign, half the box width or height, and a box noise scale. Corners are clipped to the image and converted back to center-size form.

Try translation as well as expansion. “Negative” means the target assigned to that generated training query is background; it does not mean every displayed negative has zero overlap with the object. Nor does clipping preserve a clean distance gap between the two bands. The deterministic controls show the geometry of selected perturbations, rather than simulating all randomness in the training distribution.

The positive box loss is absent for negatives. This distinction matters: reconstructing every nearby noisy box would reward multiple queries for returning to the same object. Requiring some nearby queries to reject the object creates a complementary signal. It discourages duplicates together with ordinary one-to-one matching, but it is not a mathematical guarantee that all duplicate predictions disappear.

The attention mask prevents answer leakage

Denoising inputs contain information derived from ground truth. If ordinary matching queries could read those inputs, a low training loss could reflect access to answers that will not exist at inference. A mask enforces the separation.

Read it as a directed relationship. A row is a reader; a column is a key it may read. Matching rows cannot read denoising columns. Denoising rows can read matching columns, and can read their own group, but cannot read other denoising groups. The reverse permission is intentional, so a symmetric “DN and matching never communicate” diagram would be wrong. The construction in prepare_for_cdn makes these blocks explicit.

Select M1 → G1+ and then G1+ → M1 to see the asymmetry. The figure displays permission; the upstream Boolean attention mask represents prohibition. Inverting that convention accidentally can make a matrix look plausible while enforcing precisely the wrong information flow.

Denoising groups and their target-derived inputs are removed at inference. They teach the matching branch during training; they are not an extra set of detections to concatenate into the final prediction set.

Refinement has a forward value and a backward route

An anchor is refined through additive displacements in inverse-sigmoid space:

This applies independently to the four normalized box coordinates. For a simple numerical example, a reference coordinate of 0.25 has logit -\log 3; adding \log 3 gives a refined coordinate of 0.5. A displacement is already in logit space, so applying logit to the displacement again would change the operation.

The subtlety is not that forward formula. It is which version of a refined box is used for the next reference and which is used for supervised prediction. DINO Equation 2 separates them:

The next layer consumes the detached reference b_i. Its supervised prediction can still use the undetached predecessor b'_{i-1}. Thus the adjacent layer's box loss has an additional route back to the earlier offset. The transformer reference updates and prediction-head code need to be read together to see both sides of this construction.

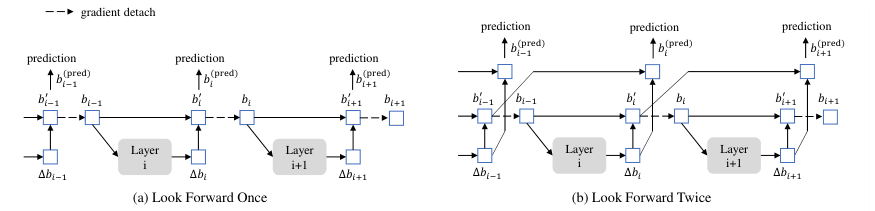

Switch the figure to the adjacent-loss gradient stage. The amber route is the additional path; the stopped reference still blocks the other route. Both schemes produce the same forward values in this toy example. They differ in the derivative used to update the earlier offset.

The scalar calculation uses an authored second head \Delta_2=1.3\tanh(\operatorname{stopgrad}(b'_1)) and half squared error. These choices make the dependency test inspectable without pretending to implement a detector head. A valid finite difference holds the stopped reference at its base-run value while perturbing the earlier offset. Recomputing it for every perturbation would silently test the undetached recurrence instead. The reported zero for “once” concerns only the adjacent box-loss route isolated here: the earlier layer still has its own supervision, and decoder hidden-state gradients are outside the toy graph.

“Look forward twice” therefore does not mean running the detector twice at inference. It describes how an offset participates in box predictions and receives supervision during training.

Accuracy belongs to a specified recipe

The mechanics explain what changes, but the outcome still depends on backbone, feature levels, pretraining and schedule. The official model zoo reports different R50 numbers for four and five feature levels. Keeping both pairs visible prevents the common mistake of combining a four-scale configuration label with a five-scale headline result.

These are published COCO val2017 AP measurements, with an ImageNet-1k-pretrained R50 backbone and COCO detection training. They are not measurements of the diagrams, the scalar Python program or this site. Extra epochs are not a direct wall-clock comparison, and a feature-level count is not enough to infer latency. Hardware, precision, image size, batch size and the timed boundary must accompany a timing claim. No local detector execution or speed measurement is presented here.

Trace the mathematics into runnable source

The rows below align the primary references, mathematical contracts and five canonical Python regions. The reference is deliberately small enough to run offline with the standard library. It checks geometry and information-flow arithmetic; it omits learned image features, a real decoder, random batch assembly, assignment and the full training criterion.

These five rows connect primary source sections to executable standard-library mathematics. Excerpts are generated from the canonical Python file; they do not implement a pretrained detector.

Keep learned content separate from selected anchors

Original paper

Enlarge figure

Math and tensor shapes

I=\operatorname{TopK}(s),\quad a_q=b^{enc}_{I_q},\quad c_q=e_q

The reference carries indices, boxes and learned content independently. It does not concatenate an encoder feature into the learned content. Ties use stable source order for deterministic illustration; this is not an upstream top-K tie guarantee.

encoder boxes [S,4], scores [S], learned content [K,D] → anchors [K,4] and content [K,D]

Python implementation

python

def mixed_queries(proposals, content, k):
    """Select encoder boxes but retain learned content by decoder slot.

    Args:
        proposals: Dictionaries with score, box and illustrative feature.
        content: Learned slot vectors, independent of encoder feature ranking.
        k: Number of queries, bounded by both inputs.

    Returns:
        Selected source indices, anchors and learned content vectors.

    Raises:
        ValueError: If k exceeds the available proposals or slots.
    """
    if not isinstance(k, int) or not 0 <= k <= min(len(proposals), len(content)):
        raise ValueError("K must fit proposals and learned content slots")
    ranked = sorted(enumerate(proposals), key=lambda pair: (-pair[1]["score"], pair[0]))
    return [{"source": source, "anchor": list(proposal["box"]),
             "content": list(content[slot])}
            for slot, (source, proposal) in enumerate(ranked[:k])]

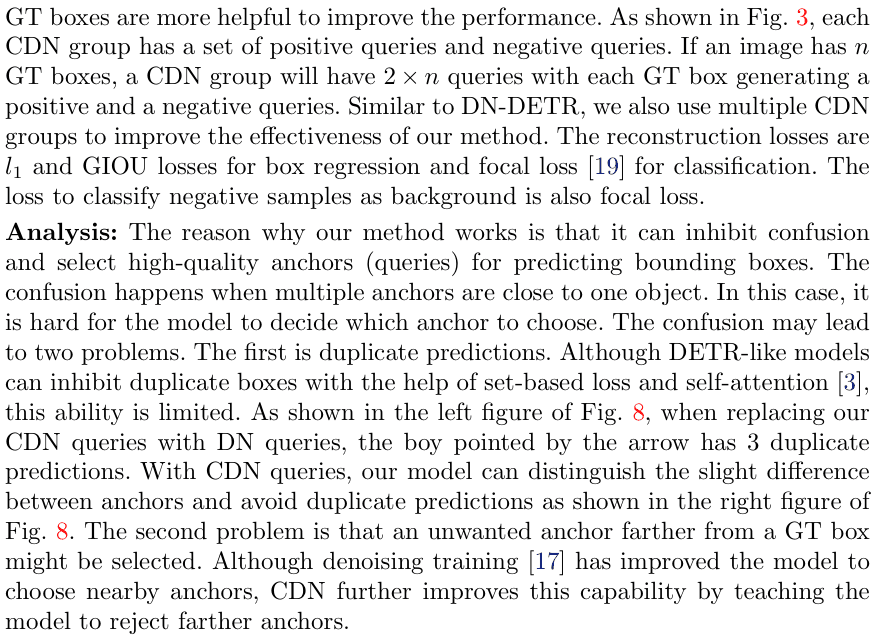

Separate positive reconstruction from negative rejection

Original paper

Enlarge figure

Math and tensor shapes

\epsilon^+=sru,\quad\epsilon^-=sr(1+u),\quad u\in[0,1]

Here r is width/2 or height/2 and s is the box noise scale; coordinate-specific signs are supplied separately. Official code samples each corner independently and clips to the image. Positive queries predict the label and box. Negative queries predict background, with no target-box reconstruction loss. The reference omits label corruption and batch padding.

target corners [4], half-size [4] → one positive [4] and one negative [4] per GT/group

Python implementation

python

def perturb_box(box, scale, negative, magnitude, signs):
    """Perturb corners with half-size-scaled noise and return clipped cxcywh.

    Positive magnitudes use [0, 1]; negatives use [1, 2], before scale.
    Fixed signs/magnitude illustrate the sampler, not its random distribution.
    """
    x, y, width, height = box
    if scale == 0:
        return list(box)
    corners = [x - width / 2, y - height / 2,
               x + width / 2, y + height / 2]
    dimensions = [width / 2, height / 2, width / 2, height / 2]
    noisy = [max(0, min(1, value + sign * size * scale
                        * (magnitude + int(negative))))
             for value, sign, size in zip(corners, signs, dimensions)]
    return [(noisy[0] + noisy[2]) / 2, (noisy[1] + noisy[3]) / 2,
            noisy[2] - noisy[0], noisy[3] - noisy[1]]

Read the mask in the correct direction

Original paper

Enlarge figure

Math and tensor shapes

A_{rc}=\begin{cases}c\in M&r\in M\\ c\in M\;\lor\;g(r)=g(c)&r\in DN\end{cases}

A means allowed; the upstream Boolean mask means blocked. A matching row cannot read any DN column. A DN row can read its own group and matching columns, but cannot read other DN groups. Group width includes both positive and negative slots.

DN groups G × group width P, matching M → allowed matrix [GP+M, GP+M]

Python implementation

python

def attention_allowed(row, column, groups, group_size):
    """Return permission: row reads column; True means allowed, not masked."""
    dn_count = groups * group_size
    if row >= dn_count:
        return column >= dn_count
    return column >= dn_count or row // group_size == column // group_size

Update coordinates in inverse-sigmoid space

Original paper

Enlarge figure

Math and tensor shapes

\operatorname{Update}(b,\Delta)=\sigma(\operatorname{logit}(b)+\Delta)

The helper shows a single coordinate, applied independently to center, width and height. Endpoint clipping avoids infinite logits. The offset is already an additive logit-space displacement; it must not be passed through logit again. This reference does not model deformable sampling locations.

reference boxes [K,4] and offsets [K,4] → refined boxes [K,4]

Python implementation

python

def update_box(reference, delta):
    """Apply a scalar logit-space box update, clipping only logit endpoints."""
    reference = max(1e-6, min(1 - 1e-6, reference))
    return 1 / (1 + math.exp(-(math.log(reference / (1 - reference)) + delta)))

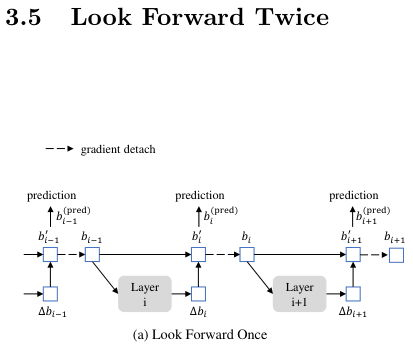

Check the additional adjacent-layer gradient route

Original paper

Enlarge figure

Math and tensor shapes

b_i^\prime=U(b_{i-1},\Delta_i),\;b_i=\operatorname{sg}(b_i^\prime),\;p_i=U(b_{i-1}^\prime,\Delta_i)

The authored tanh head and squared loss instantiate this dependency structure, not the detector objective. Freeze the stopped reference when perturbing the earlier offset numerically. Recomputing it per perturbation tests the ordinary undetached recurrence instead. A zero once-gradient describes only this adjacent box-loss route, not all hidden-state gradients or the earlier layer’s own loss.

two scalar offset stages → prediction, analytic derivative and frozen-reference finite difference

Python implementation

python

def gradient_graph(first_offset=0.2, second_weight=1.3, target=0.75):
    """Check an authored adjacent-loss derivative, freezing the reference.

    This is a local finite difference of a graph with stop-gradient semantics.
    Re-evaluating the detached reference after perturbing first_offset would
    accidentally include a path that automatic differentiation blocks.
    """
    first = update_box(0.4, first_offset)
    frozen_reference = first
    delta = second_weight * math.tanh(frozen_reference)
    prediction = update_box(first, delta)
    epsilon = 1e-5

    def loss(value):
        return 0.5 * (value - target) ** 2

    def evaluate(offset):
        return loss(update_box(update_box(0.4, offset), delta))

    gradient = (prediction - target) * prediction * (1 - prediction)
    return {
        "first": first, "prediction": prediction, "loss": loss(prediction),
        "gradient": gradient,
        "finiteDifference": (evaluate(first_offset + epsilon)
                             - evaluate(first_offset - epsilon)) / (2 * epsilon),
        "onceGradient": 0, "referenceGradient": 0,
        "naiveGradient": gradient * (1 + second_weight
                                     * (1 - math.tanh(first) ** 2)
                                     * first * (1 - first)),
    }

Run python3 examples/dino_detr.py. Download the Python reference, read its limitations, or inspect requirements. No third-party packages are needed.

From learning quality to runtime budget

DINO separates three concerns that can otherwise blur together: a useful spatial starting point, stable positive and negative supervision, and the route by which refinement losses reach earlier predictions. It inherits sparse reads from Deformable DETR, box-based positional queries from DAB-DETR, and denoising from DN-DETR, then changes how those pieces initialize and learn.

The next question is what remains expensive once those learning mechanisms work. LW-DETR shifts attention to backbone organization, memory layout, the projector and a shallow decoder under a runtime budget. That is a selected reading sequence, not a claim that every intervening detector follows a single direct lineage. Later, RF-DETR brings in a DINOv2 representation backbone and architecture adaptation; that reuse of the self-supervised family should not be confused with detector DINO's CDN training.

Primary references

• DINO v4: §§3.3–3.5, Figures 3, 5–6 and Equation 2; first preprint 2022, ICLR publication 2023.
• Official DINO repository: model zoo, query/reference implementation, CDN preparation and prediction heads.
• DAB-DETR: dynamic anchor boxes as decoder positional queries.
• DN-DETR: noisy target reconstruction alongside ordinary matching supervision.
• RF-DETR §3: LW-DETR context and the separate DINOv2 backbone family.
